5.5.10 The Oscillation Spectrum at Closed Feedback Loop
At the closed switch Sw, in the diagram shown Figs. 5.10 and 5.11, at fulfillment of
OEO excitation conditions, the amplified electrical oscillation passes to the electrical
input of the MZ modulator from the output of the photodetector. We would like to
note that this oscillation is delayed by the time T FOS with respect to the laser
oscillation, which arrives to the photodetector. As shown in Chap. 6 of the present
book, in this case, the radio-frequency spectrum in the PD output S RFL (F) is
determined by the formula:
random quantity h
0.02
0.02
10 -5
10 -10
10 -15
0.001
0.010
0.005
0.100
0.050
0.010
0.005
0.050
0.100
5 × 10 –4
1
0.2
0.2
(a)
–0.010
–0.005
0.005
0.010
random quantity h
(b)
probability distribution
p
02 (h)
probability distribution
p
02 (h)
s
2
x = 2
s
2
x = 2

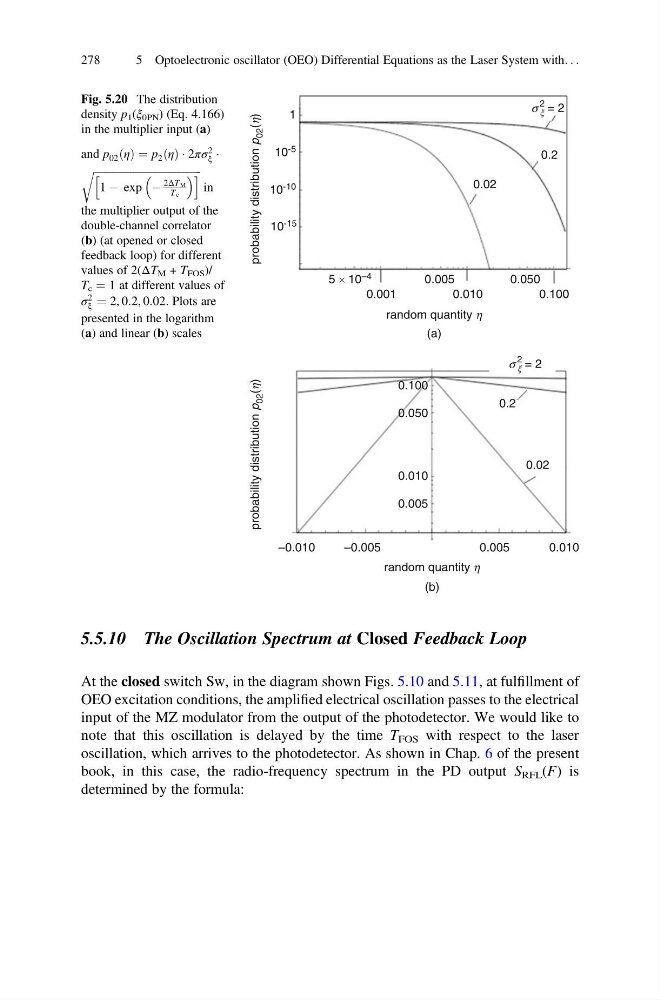

Fig. 5.20 The distribution
