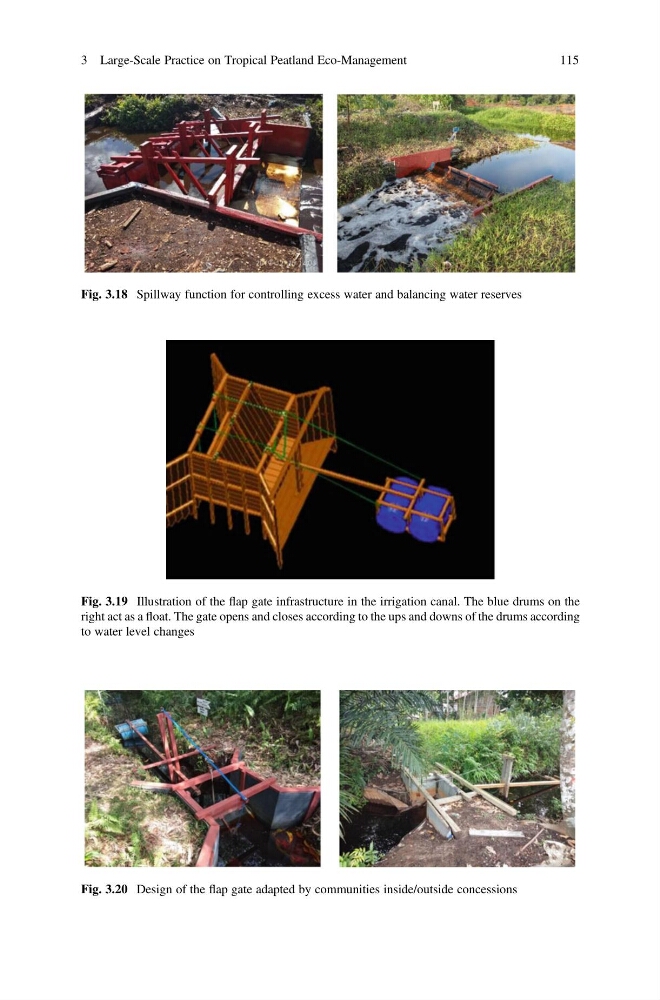

Fig. 3.19 Illustration of the flap gate infrastructure in the irrigation canal. The blue drums on the
right act as a float. The gate opens and closes according to the ups and downs of the drums according
to water level changes
Fig. 3.18 Spillway function for controlling excess water and balancing water reserves
Fig. 3.20 Design of the flap gate adapted by communities inside/outside concessions
3 Large-Scale Practice on Tropical Peatland Eco-Management
115
