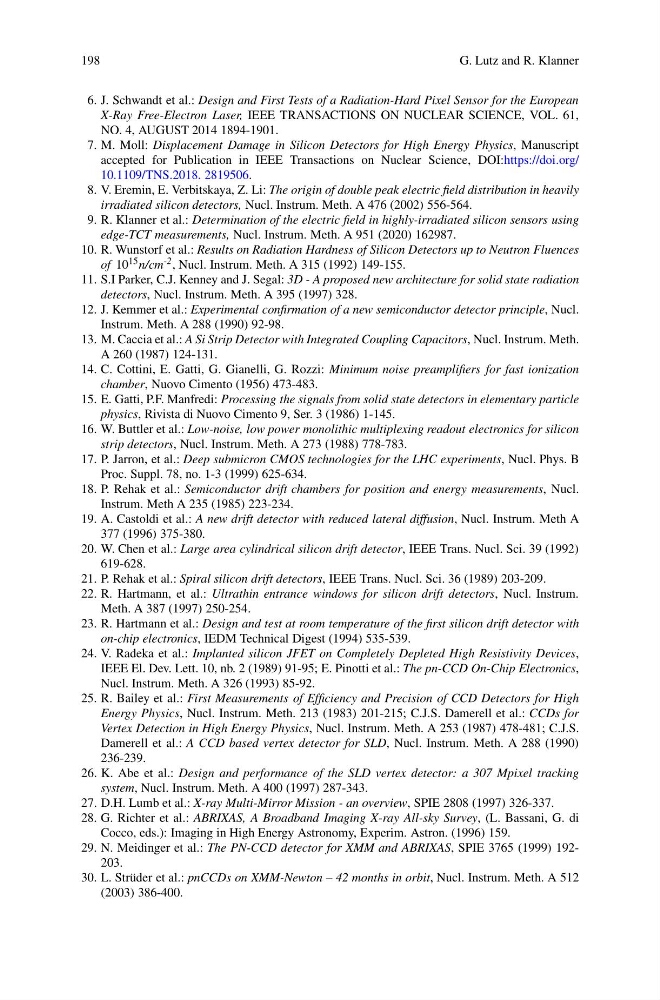

198
G. Lutz and R. Klanner
6. J. Schwandt et al.: Design and First Tests of a Radiation-Hard Pixel Sensor for the European
X-Ray Free-Electron Laser, IEEE TRANSACTIONS ON NUCLEAR SCIENCE, VOL. 61,
NO. 4, AUGUST 2014 1894-1901.
7. M. Moll: Displacement Damage in Silicon Detectors for High Energy Physics, Manuscript
accepted for Publication in IEEE Transactions on Nuclear Science, DOI:https://doi.org/
10.1109/TNS.2018. 2819506.
8. V. Eremin, E. Verbitskaya, Z. Li: The origin of double peak electric field distribution in heavily
irradiated silicon detectors, Nucl. Instrum. Meth. A 476 (2002) 556-564.
9. R. Klanner et al.: Determination of the electric field in highly-irradiated silicon sensors using
edge-TCT measurements, Nucl. Instrum. Meth. A 951 (2020) 162987.
10. R. Wunstorf et al.: Results on Radiation Hardness of Silicon Detectors up to Neutron Fluences
of 10 15 n/cm -2 , Nucl. Instrum. Meth. A 315 (1992) 149-155.
11. S.I Parker, C.J. Kenney and J. Segal: 3D - A proposed new architecture for solid state radiation
detectors, Nucl. Instrum. Meth. A 395 (1997) 328.
12. J. Kemmer et al.: Experimental confirmation of a new semiconductor detector principle, Nucl.
Instrum. Meth. A 288 (1990) 92-98.
13. M. Caccia et al.: A Si Strip Detector with Integrated Coupling Capacitors, Nucl. Instrum. Meth.
A 260 (1987) 124-131.
14. C. Cottini, E. Gatti, G. Gianelli, G. Rozzi: Minimum noise preamplifiers for fast ionization
chamber, Nuovo Cimento (1956) 473-483.
15. E. Gatti, P.F. Manfredi: Processing the signals from solid state detectors in elementary particle
physics, Rivista di Nuovo Cimento 9, Ser. 3 (1986) 1-145.
16. W. Buttler et al.: Low-noise, low power monolithic multiplexing readout electronics for silicon
strip detectors, Nucl. Instrum. Meth. A 273 (1988) 778-783.
17. P. Jarron, et al.: Deep submicron CMOS technologies for the LHC experiments, Nucl. Phys. B
Proc. Suppl. 78, no. 1-3 (1999) 625-634.
18. P. Rehak et al.: Semiconductor drift chambers for position and energy measurements, Nucl.
Instrum. Meth A 235 (1985) 223-234.
19. A. Castoldi et al.: A new drift detector with reduced lateral diffusion, Nucl. Instrum. Meth A
377 (1996) 375-380.
20. W. Chen et al.: Large area cylindrical silicon drift detector, IEEE Trans. Nucl. Sci. 39 (1992)
619-628.
21. P. Rehak et al.: Spiral silicon drift detectors, IEEE Trans. Nucl. Sci. 36 (1989) 203-209.
22. R. Hartmann, et al.: Ultrathin entrance windows for silicon drift detectors, Nucl. Instrum.
Meth. A 387 (1997) 250-254.
23. R. Hartmann et al.: Design and test at room temperature of the first silicon drift detector with
on-chip electronics, IEDM Technical Digest (1994) 535-539.
24. V. Radeka et al.: Implanted silicon JFET on Completely Depleted High Resistivity Devices,
IEEE El. Dev. Lett. 10, nb. 2 (1989) 91-95; E. Pinotti et al.: The pn-CCD On-Chip Electronics,
Nucl. Instrum. Meth. A 326 (1993) 85-92.
25. R. Bailey et al.: First Measurements of Efficiency and Precision of CCD Detectors for High
Energy Physics, Nucl. Instrum. Meth. 213 (1983) 201-215; C.J.S. Damerell et al.: CCDs for
Vertex Detection in High Energy Physics, Nucl. Instrum. Meth. A 253 (1987) 478-481; C.J.S.
Damerell et al.: A CCD based vertex detector for SLD, Nucl. Instrum. Meth. A 288 (1990)
236-239.
26. K. Abe et al.: Design and performance of the SLD vertex detector: a 307 Mpixel tracking
system, Nucl. Instrum. Meth. A 400 (1997) 287-343.
27. D.H. Lumb et al.: X-ray Multi-Mirror Mission - an overview, SPIE 2808 (1997) 326-337.
28. G. Richter et al.: ABRIXAS, A Broadband Imaging X-ray All-sky Survey, (L. Bassani, G. di
Cocco, eds.): Imaging in High Energy Astronomy, Experim. Astron. (1996) 159.
29. N. Meidinger et al.: The PN-CCD detector for XMM and ABRIXAS, SPIE 3765 (1999) 192203.
30. L. Strüder et al.: pnCCDs on XMM-Newton – 42 months in orbit, Nucl. Instrum. Meth. A 512
(2003) 386-400.
