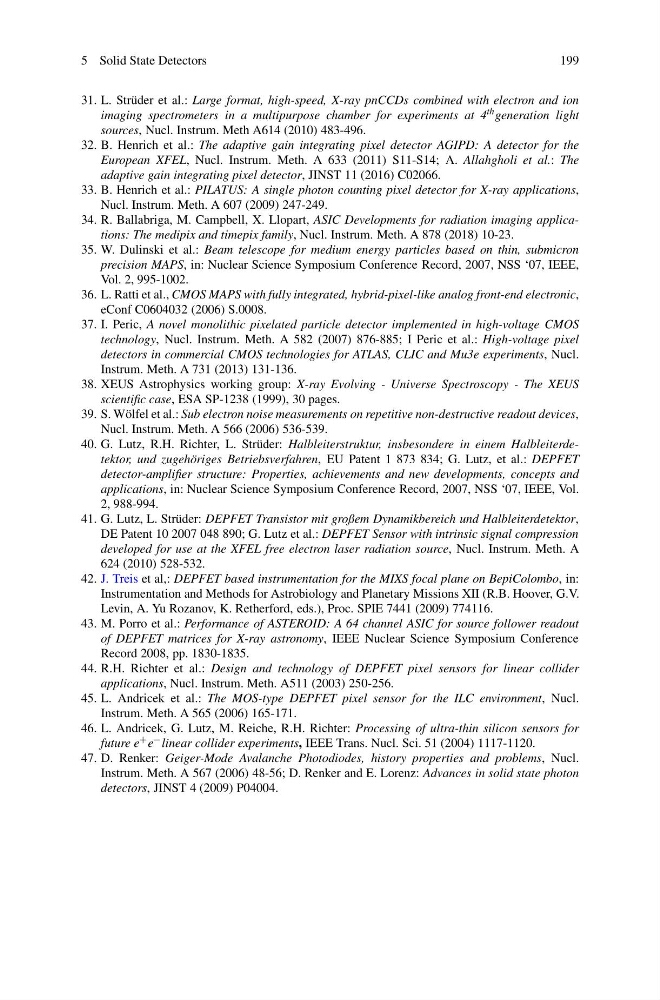

5 Solid State Detectors
199
31. L. Strüder et al.: Large format, high-speed, X-ray pnCCDs combined with electron and ion
imaging spectrometers in a multipurpose chamber for experiments at 4 th generation light
sources, Nucl. Instrum. Meth A614 (2010) 483-496.
32. B. Henrich et al.: The adaptive gain integrating pixel detector AGIPD: A detector for the
European XFEL, Nucl. Instrum. Meth. A 633 (2011) S11-S14; A. Allahgholi et al.: The
adaptive gain integrating pixel detector, JINST 11 (2016) C02066.
33. B. Henrich et al.: PILATUS: A single photon counting pixel detector for X-ray applications,
Nucl. Instrum. Meth. A 607 (2009) 247-249.
34. R. Ballabriga, M. Campbell, X. Llopart, ASIC Developments for radiation imaging applications: The medipix and timepix family, Nucl. Instrum. Meth. A 878 (2018) 10-23.
35. W. Dulinski et al.: Beam telescope for medium energy particles based on thin, submicron
precision MAPS, in: Nuclear Science Symposium Conference Record, 2007, NSS ‘07, IEEE,
Vol. 2, 995-1002.
36. L. Ratti et al., CMOS MAPS with fully integrated, hybrid-pixel-like analog front-end electronic,
eConf C0604032 (2006) S.0008.
37. I. Peric, A novel monolithic pixelated particle detector implemented in high-voltage CMOS
technology, Nucl. Instrum. Meth. A 582 (2007) 876-885; I Peric et al.: High-voltage pixel
detectors in commercial CMOS technologies for ATLAS, CLIC and Mu3e experiments, Nucl.
Instrum. Meth. A 731 (2013) 131-136.
38. XEUS Astrophysics working group: X-ray Evolving - Universe Spectroscopy - The XEUS
scientific case, ESA SP-1238 (1999), 30 pages.
39. S. Wölfel et al.: Sub electron noise measurements on repetitive non-destructive readout devices,
Nucl. Instrum. Meth. A 566 (2006) 536-539.
40. G. Lutz, R.H. Richter, L. Strüder: Halbleiterstruktur, insbesondere in einem Halbleiterdetektor, und zugehöriges Betriebsverfahren, EU Patent 1 873 834; G. Lutz, et al.: DEPFET
detector-amplifier structure: Properties, achievements and new developments, concepts and
applications, in: Nuclear Science Symposium Conference Record, 2007, NSS ‘07, IEEE, Vol.
2, 988-994.
41. G. Lutz, L. Strüder: DEPFET Transistor mit großem Dynamikbereich und Halbleiterdetektor,
DE Patent 10 2007 048 890; G. Lutz et al.: DEPFET Sensor with intrinsic signal compression
developed for use at the XFEL free electron laser radiation source, Nucl. Instrum. Meth. A
624 (2010) 528-532.
42. J. Treis et al,: DEPFET based instrumentation for the MIXS focal plane on BepiColombo, in:
Instrumentation and Methods for Astrobiology and Planetary Missions XII (R.B. Hoover, G.V.
Levin, A. Yu Rozanov, K. Retherford, eds.), Proc. SPIE 7441 (2009) 774116.
43. M. Porro et al.: Performance of ASTEROID: A 64 channel ASIC for source follower readout
of DEPFET matrices for X-ray astronomy, IEEE Nuclear Science Symposium Conference
Record 2008, pp. 1830-1835.
44. R.H. Richter et al.: Design and technology of DEPFET pixel sensors for linear collider
applications, Nucl. Instrum. Meth. A511 (2003) 250-256.
45. L. Andricek et al.: The MOS-type DEPFET pixel sensor for the ILC environment, Nucl.
Instrum. Meth. A 565 (2006) 165-171.
46. L. Andricek, G. Lutz, M. Reiche, R.H. Richter: Processing of ultra-thin silicon sensors for
future e + e − linear collider experiments, IEEE Trans. Nucl. Sci. 51 (2004) 1117-1120.
47. D. Renker: Geiger-Mode Avalanche Photodiodes, history properties and problems, Nucl.
Instrum. Meth. A 567 (2006) 48-56; D. Renker and E. Lorenz: Advances in solid state photon
detectors, JINST 4 (2009) P04004.
199
