6 Design and Principles of Synchrotrons and Circular Colliders
255

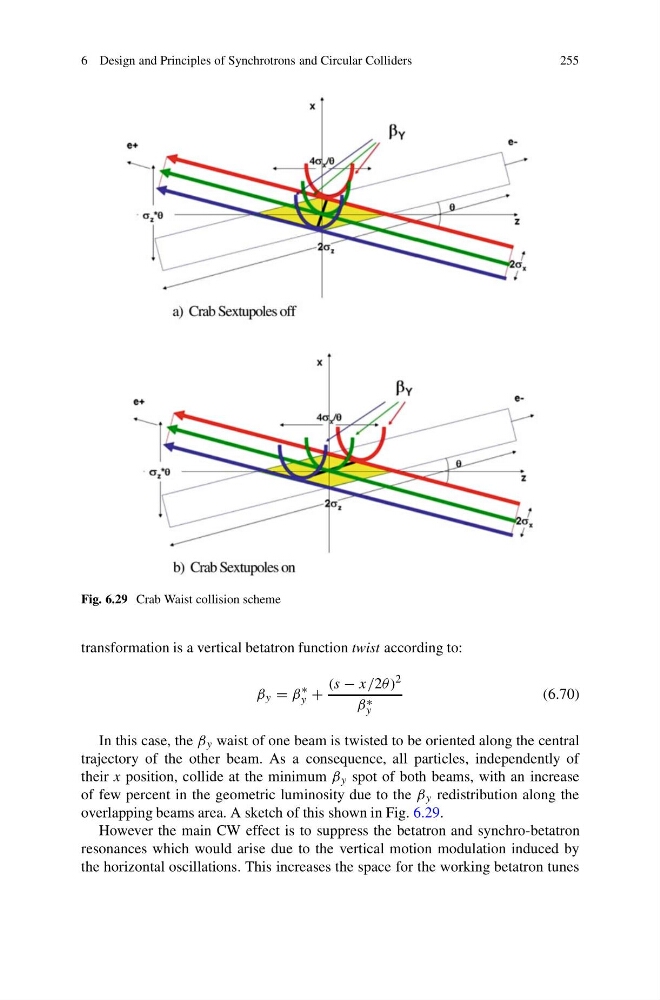

Fig. 6.29 Crab Waist collision scheme
transformation is a vertical betatron function twist according to:
β y = β
∗
y +
(s − x/2θ )
2
β ∗
y
(6.70)
In this case, the β y waist of one beam is twisted to be oriented along the central
trajectory of the other beam. As a consequence, all particles, independently of
their x position, collide at the minimum β y spot of both beams, with an increase
of few percent in the geometric luminosity due to the β y redistribution along the
overlapping beams area. A sketch of this shown in Fig. 6.29.
However the main CW effect is to suppress the betatron and synchro-betatron
resonances which would arise due to the vertical motion modulation induced by
the horizontal oscillations. This increases the space for the working betatron tunes
