12 Inter-spin Interactions of Organic Radical Chains in Organic 1D. . .
433

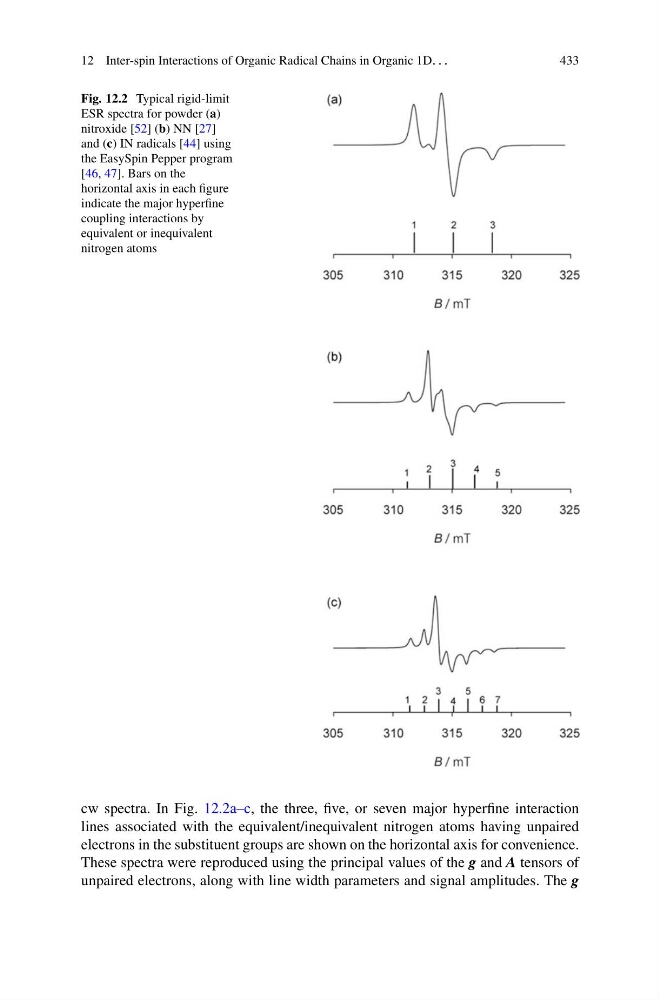

Fig. 12.2 Typical rigid-limit
ESR spectra for powder (a)
nitroxide [52] (b) NN [27]
and (c) IN radicals [44] using
the EasySpin Pepper program
[46, 47]. Bars on the
horizontal axis in each figure
indicate the major hyperfine
coupling interactions by
equivalent or inequivalent
nitrogen atoms
cw spectra. In Fig. 12.2a–c, the three, five, or seven major hyperfine interaction
lines associated with the equivalent/inequivalent nitrogen atoms having unpaired
electrons in the substituent groups are shown on the horizontal axis for convenience.
These spectra were reproduced using the principal values of the g and A tensors of
unpaired electrons, along with line width parameters and signal amplitudes. The g
