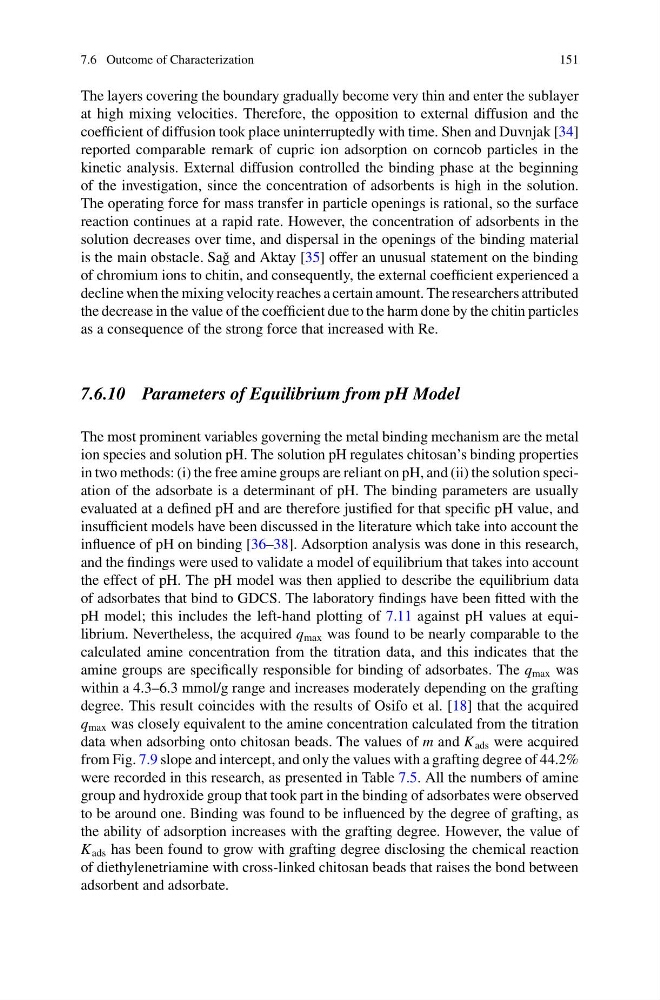

7.6 Outcome of Characterization
151
The layers covering the boundary gradually become very thin and enter the sublayer
at high mixing velocities. Therefore, the opposition to external diffusion and the
coefficient of diffusion took place uninterruptedly with time. Shen and Duvnjak [34]
reported comparable remark of cupric ion adsorption on corncob particles in the
kinetic analysis. External diffusion controlled the binding phase at the beginning
of the investigation, since the concentration of adsorbents is high in the solution.
The operating force for mass transfer in particle openings is rational, so the surface
reaction continues at a rapid rate. However, the concentration of adsorbents in the
solution decreases over time, and dispersal in the openings of the binding material
is the main obstacle. Saˇ g and Aktay [35] offer an unusual statement on the binding
of chromium ions to chitin, and consequently, the external coefficient experienced a
decline when the mixing velocity reaches a certain amount. The researchers attributed
the decrease in the value of the coefficient due to the harm done by the chitin particles
as a consequence of the strong force that increased with Re.
7.6.10 Parameters of Equilibrium from pH Model
The most prominent variables governing the metal binding mechanism are the metal
ion species and solution pH. The solution pH regulates chitosan’s binding properties
in two methods: (i) the free amine groups are reliant on pH, and (ii) the solution speciation of the adsorbate is a determinant of pH. The binding parameters are usually
evaluated at a defined pH and are therefore justified for that specific pH value, and
insufficient models have been discussed in the literature which take into account the
influence of pH on binding [36–38]. Adsorption analysis was done in this research,
and the findings were used to validate a model of equilibrium that takes into account
the effect of pH. The pH model was then applied to describe the equilibrium data
of adsorbates that bind to GDCS. The laboratory findings have been fitted with the
pH model; this includes the left-hand plotting of 7.11 against pH values at equilibrium. Nevertheless, the acquired q max was found to be nearly comparable to the
calculated amine concentration from the titration data, and this indicates that the
amine groups are specifically responsible for binding of adsorbates. The q max was
within a 4.3–6.3 mmol/g range and increases moderately depending on the grafting
degree. This result coincides with the results of Osifo et al. [18] that the acquired
q max was closely equivalent to the amine concentration calculated from the titration
data when adsorbing onto chitosan beads. The values of m and K ads were acquired
from Fig. 7.9 slope and intercept, and only the values with a grafting degree of 44.2%
were recorded in this research, as presented in Table 7.5. All the numbers of amine
group and hydroxide group that took part in the binding of adsorbates were observed
to be around one. Binding was found to be influenced by the degree of grafting, as
the ability of adsorption increases with the grafting degree. However, the value of
K ads has been found to grow with grafting degree disclosing the chemical reaction
of diethylenetriamine with cross-linked chitosan beads that raises the bond between
adsorbent and adsorbate.
