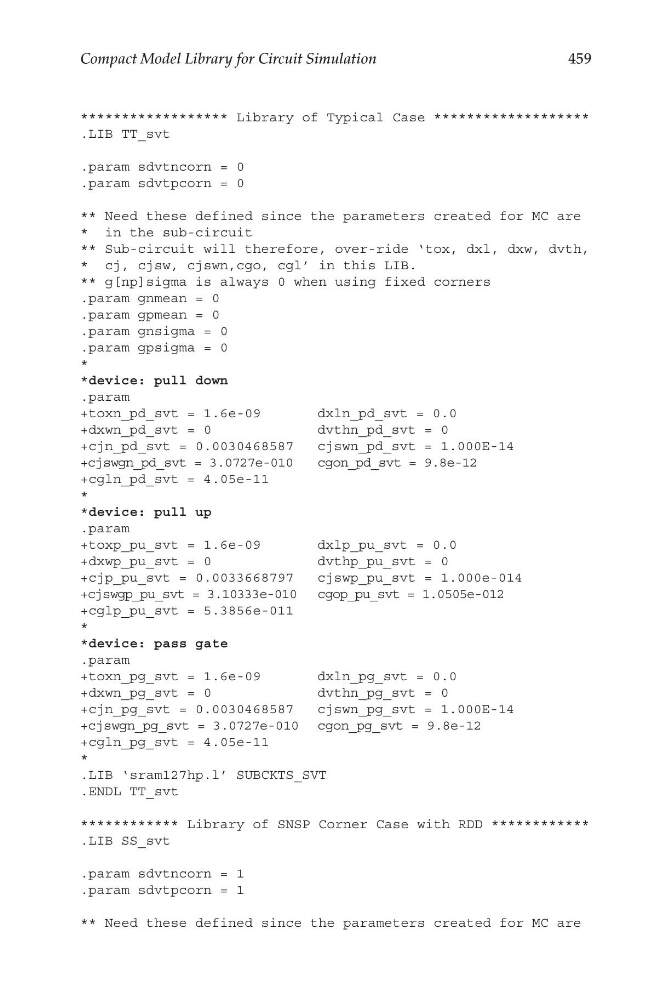

Compact Model Library for Circuit Simulation
****************** Library of Typical Case *******************
.LIB TT_svt
.param sdvtncorn = 0
.param sdvtpcorn = 0
** Need these defined since the parameters created for MC are
* in the sub-circuit
** Sub-circuit will therefore, over-ride ‘tox, dxl, dxw, dvth,
* cj, cjsw, cjswn,cgo, cgl’ in this LIB.
** g[np]sigma is always 0 when using fixed corners
.param gnmean = 0
.param gpmean = 0
.param gnsigma = 0
.param gpsigma = 0
*
*device: pull down
.param
+toxn_pd_svt = 1.6e-09
dxln_pd_svt = 0.0
+dxwn_pd_svt = 0
dvthn_pd_svt = 0
+cjn_pd_svt = 0.0030468587
cjswn_pd_svt = 1.000E-14
+cjswgn_pd_svt = 3.0727e-010
cgon_pd_svt = 9.8e-12
+cgln_pd_svt = 4.05e-11
*
*device: pull up
.param
+toxp_pu_svt = 1.6e-09
dxlp_pu_svt = 0.0
+dxwp_pu_svt = 0
dvthp_pu_svt = 0
+cjp_pu_svt = 0.0033668797
cjswp_pu_svt = 1.000e-014
+cjswgp_pu_svt = 3.10333e-010 cgop_pu_svt = 1.0505e-012
+cglp_pu_svt = 5.3856e-011
*
*device: pass gate
.param
+toxn_pg_svt = 1.6e-09
dxln_pg_svt = 0.0
+dxwn_pg_svt = 0
dvthn_pg_svt = 0
+cjn_pg_svt = 0.0030468587
cjswn_pg_svt = 1.000E-14
+cjswgn_pg_svt = 3.0727e-010 cgon_pg_svt = 9.8e-12
+cgln_pg_svt = 4.05e-11
*
.LIB ‘sram127hp.l’ SUBCKTS_SVT
.ENDL TT_svt
************ Library of SNSP Corner Case with RDD ************
.LIB SS_svt
.param sdvtncorn = 1
.param sdvtpcorn = 1
** Need these defined since the parameters created for MC are
