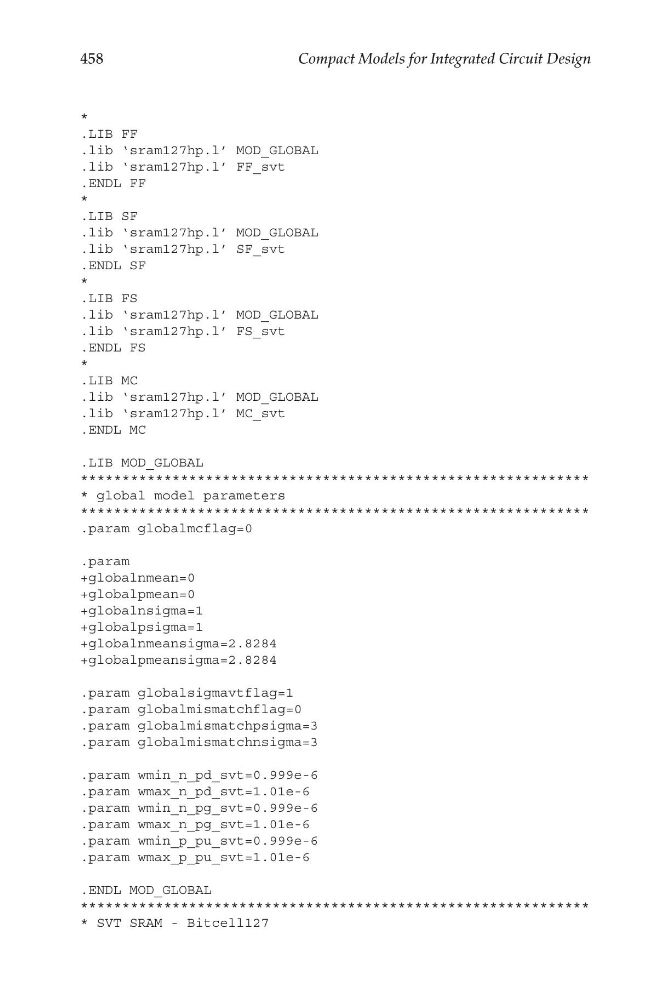

458
Compact Models for Integrated Circuit Design
*
.LIB FF
.lib ‘sram127hp.l’ MOD_GLOBAL
.lib ‘sram127hp.l’ FF_svt
.ENDL FF
*
.LIB SF
.lib ‘sram127hp.l’ MOD_GLOBAL
.lib ‘sram127hp.l’ SF_svt
.ENDL SF
*
.LIB FS
.lib ‘sram127hp.l’ MOD_GLOBAL
.lib ‘sram127hp.l’ FS_svt
.ENDL FS
*
.LIB MC
.lib ‘sram127hp.l’ MOD_GLOBAL
.lib ‘sram127hp.l’ MC_svt
.ENDL MC
.LIB MOD_GLOBAL
*************************************************************
* global model parameters
*************************************************************
.param globalmcflag=0
.param
+globalnmean=0
+globalpmean=0
+globalnsigma=1
+globalpsigma=1
+globalnmeansigma=2.8284
+globalpmeansigma=2.8284
.param globalsigmavtflag=1
.param globalmismatchflag=0
.param globalmismatchpsigma=3
.param globalmismatchnsigma=3
.param wmin_n_pd_svt=0.999e-6
.param wmax_n_pd_svt=1.01e-6
.param wmin_n_pg_svt=0.999e-6
.param wmax_n_pg_svt=1.01e-6
.param wmin_p_pu_svt=0.999e-6
.param wmax_p_pu_svt=1.01e-6
.ENDL MOD_GLOBAL
*************************************************************
* SVT SRAM - Bitcell127
