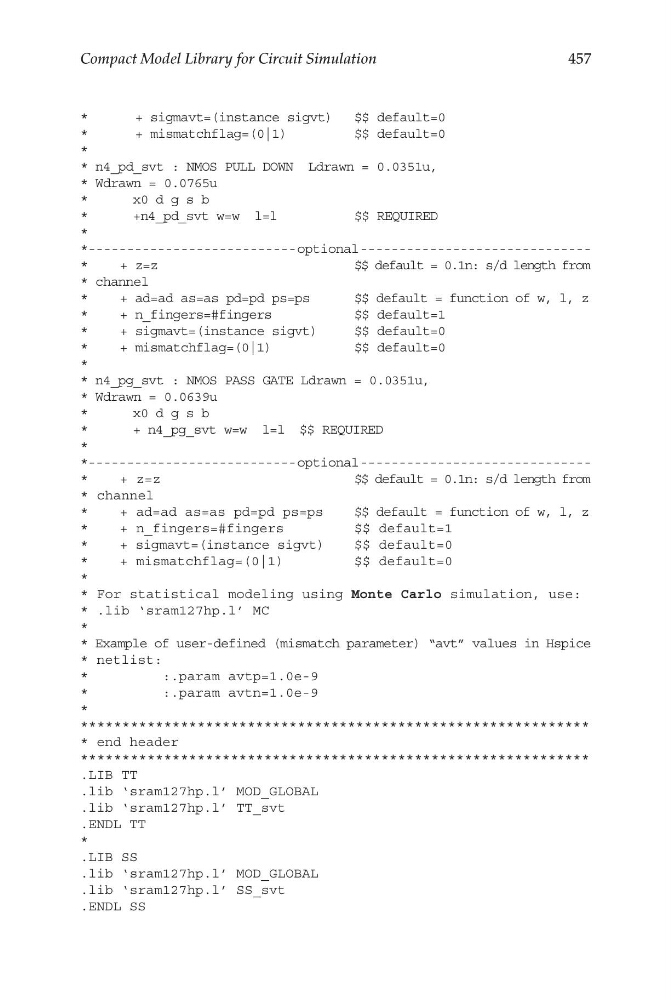

+ sigmavt=(instance sigvt)
$$ default=0
*
+ mismatchflag=(0|1)
$$ default=0
*
* n4_pd_svt : NMOS PULL DOWN Ldrawn = 0.0351u,
* Wdrawn = 0.0765u
*
x0 d g s b
*
+n4_pd_svt w=w l=l
$$ REQUIRED
*
*--------------------------- optional -----------------------------*
+ z=z
$$ default = 0.1n: s/d length from
* channel
*
+ ad=ad as=as pd=pd ps=ps
$$ default = function of w, l, z
*
+ n_fingers=#fingers
$$ default=1
*
+ sigmavt=(instance sigvt)
$$ default=0
*
+ mismatchflag=(0|1)
$$ default=0
*
* n4_pg_svt : NMOS PASS GATE Ldrawn = 0.0351u,
* Wdrawn = 0.0639u
*
x0 d g s b
*
+ n4_pg_svt w=w l=l $$ REQUIRED
*
*--------------------------- optional -----------------------------*
+ z=z
$$ default = 0.1n: s/d length from
* channel
*
+ ad=ad as=as pd=pd ps=ps
$$ default = function of w, l, z
*
+ n_fingers=#fingers
$$ default=1
*
+ sigmavt=(instance sigvt)
$$ default=0
*
+ mismatchflag=(0|1)
$$ default=0
*
* For statistical modeling using Monte Carlo simulation, use:
* .lib ‘sram127hp.l’ MC
*
* Example of user-defined (mismatch parameter) “avt” values in Hspice
* netlist:
*
:.param avtp=1.0e-9
*
:.param avtn=1.0e-9
*
*************************************************************
* end header
*************************************************************
.LIB TT
.lib ‘sram127hp.l’ MOD_GLOBAL
.lib ‘sram127hp.l’ TT_svt
.ENDL TT
*
.LIB SS
.lib ‘sram127hp.l’ MOD_GLOBAL
.lib ‘sram127hp.l’ SS_svt
.ENDL SS
