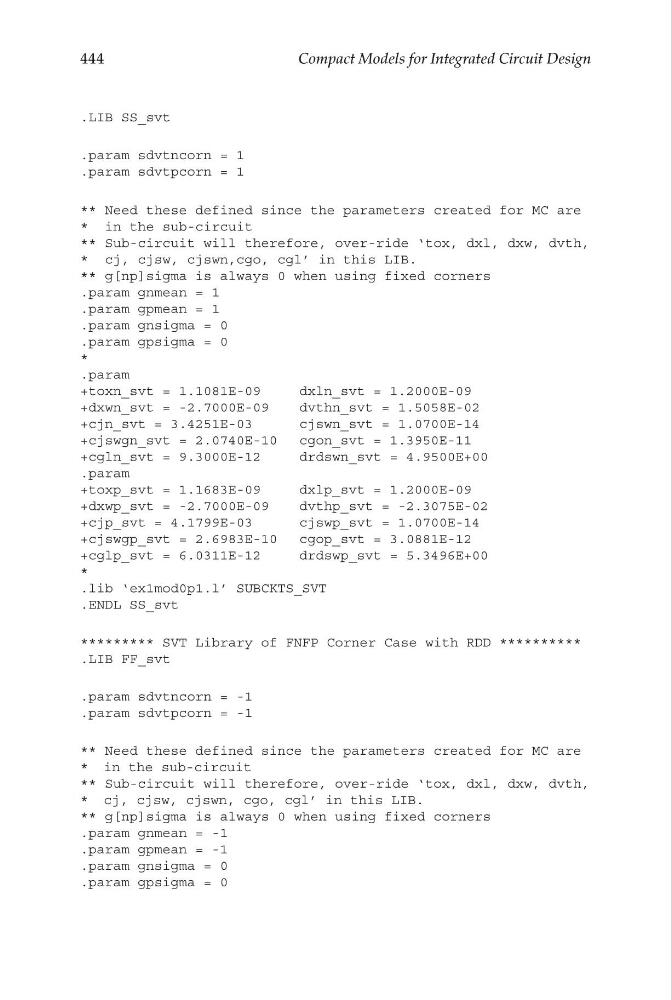

444
Compact Models for Integrated Circuit Design
.LIB SS_svt
.param sdvtncorn = 1
.param sdvtpcorn = 1
** Need these defined since the parameters created for MC are
* in the sub-circuit
** Sub-circuit will therefore, over-ride ‘tox, dxl, dxw, dvth,
* cj, cjsw, cjswn,cgo, cgl’ in this LIB.
** g[np]sigma is always 0 when using fixed corners
.param gnmean = 1
.param gpmean = 1
.param gnsigma = 0
.param gpsigma = 0
*
.param
+toxn_svt = 1.1081E-09
dxln_svt = 1.2000E-09
+dxwn_svt = -2.7000E-09
dvthn_svt = 1.5058E-02
+cjn_svt = 3.4251E-03
cjswn_svt = 1.0700E-14
+cjswgn_svt = 2.0740E-10
cgon_svt = 1.3950E-11
+cgln_svt = 9.3000E-12
drdswn_svt = 4.9500E+00
.param
+toxp_svt = 1.1683E-09
dxlp_svt = 1.2000E-09
+dxwp_svt = -2.7000E-09
dvthp_svt = -2.3075E-02
+cjp_svt = 4.1799E-03
cjswp_svt = 1.0700E-14
+cjswgp_svt = 2.6983E-10
cgop_svt = 3.0881E-12
+cglp_svt = 6.0311E-12
drdswp_svt = 5.3496E+00
*
.lib ‘ex1mod0p1.l’ SUBCKTS_SVT
.ENDL SS_svt
********* SVT Library of FNFP Corner Case with RDD **********
.LIB FF_svt
.param sdvtncorn = -1
.param sdvtpcorn = -1
** Need these defined since the parameters created for MC are
* in the sub-circuit
** Sub-circuit will therefore, over-ride ‘tox, dxl, dxw, dvth,
* cj, cjsw, cjswn, cgo, cgl’ in this LIB.
** g[np]sigma is always 0 when using fixed corners
.param gnmean = -1
.param gpmean = -1
.param gnsigma = 0
.param gpsigma = 0
