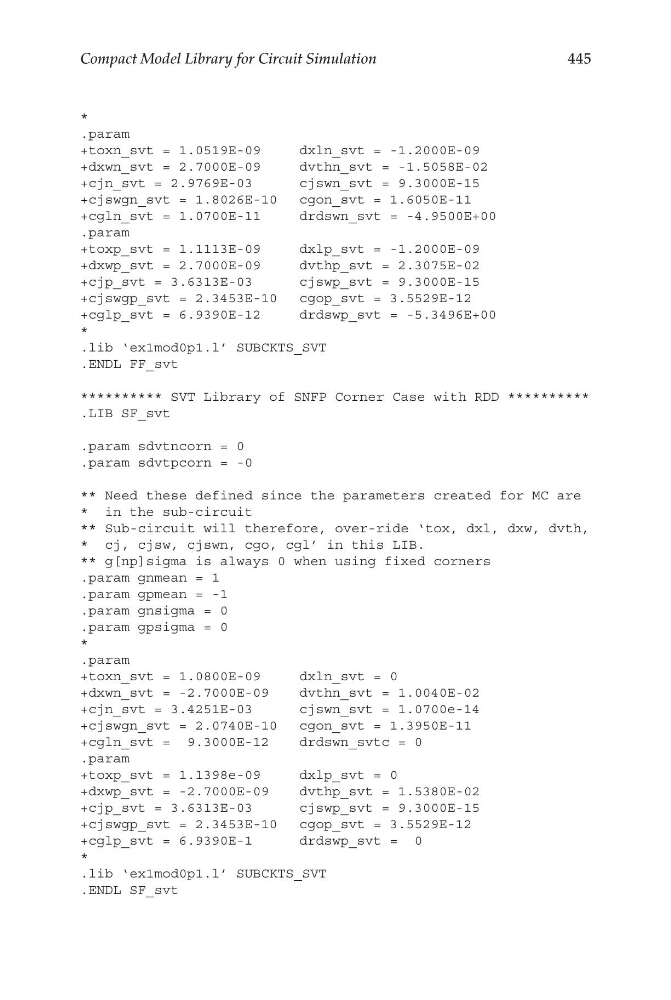

Compact Model Library for Circuit Simulation
*
.param
+toxn_svt = 1.0519E-09
dxln_svt = -1.2000E-09
+dxwn_svt = 2.7000E-09
dvthn_svt = -1.5058E-02
+cjn_svt = 2.9769E-03
cjswn_svt = 9.3000E-15
+cjswgn_svt = 1.8026E-10
cgon_svt = 1.6050E-11
+cgln_svt = 1.0700E-11
drdswn_svt = -4.9500E+00
.param
+toxp_svt = 1.1113E-09
dxlp_svt = -1.2000E-09
+dxwp_svt = 2.7000E-09
dvthp_svt = 2.3075E-02
+cjp_svt = 3.6313E-03
cjswp_svt = 9.3000E-15
+cjswgp_svt = 2.3453E-10
cgop_svt = 3.5529E-12
+cglp_svt = 6.9390E-12
drdswp_svt = -5.3496E+00
*
.lib ‘ex1mod0p1.l’ SUBCKTS_SVT
.ENDL FF_svt
********** SVT Library of SNFP Corner Case with RDD **********
.LIB SF_svt
.param sdvtncorn = 0
.param sdvtpcorn = -0
** Need these defined since the parameters created for MC are
* in the sub-circuit
** Sub-circuit will therefore, over-ride ‘tox, dxl, dxw, dvth,
* cj, cjsw, cjswn, cgo, cgl’ in this LIB.
** g[np]sigma is always 0 when using fixed corners
.param gnmean = 1
.param gpmean = -1
.param gnsigma = 0
.param gpsigma = 0
*
.param
+toxn_svt = 1.0800E-09
dxln_svt = 0
+dxwn_svt = -2.7000E-09
dvthn_svt = 1.0040E-02
+cjn_svt = 3.4251E-03
cjswn_svt = 1.0700e-14
+cjswgn_svt = 2.0740E-10
cgon_svt = 1.3950E-11
+cgln_svt = 9.3000E-12
drdswn_svtc = 0
.param
+toxp_svt = 1.1398e-09
dxlp_svt = 0
+dxwp_svt = -2.7000E-09
dvthp_svt = 1.5380E-02
+cjp_svt = 3.6313E-03
cjswp_svt = 9.3000E-15
+cjswgp_svt = 2.3453E-10
cgop_svt = 3.5529E-12
+cglp_svt = 6.9390E-1
drdswp_svt = 0
*
.lib ‘ex1mod0p1.l’ SUBCKTS_SVT
.ENDL SF_svt
