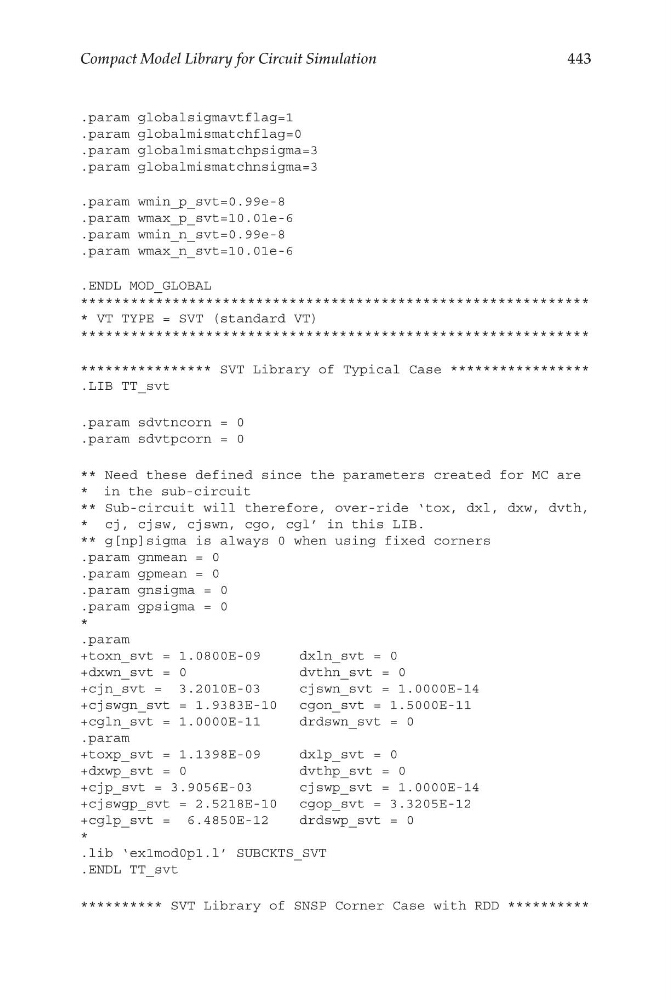

443
Compact Model Library for Circuit Simulation
.param globalsigmavtflag=1
.param globalmismatchflag=0
.param globalmismatchpsigma=3
.param globalmismatchnsigma=3
.param wmin_p_svt=0.99e-8
.param wmax_p_svt=10.01e-6
.param wmin_n_svt=0.99e-8
.param wmax_n_svt=10.01e-6
.ENDL MOD_GLOBAL
*************************************************************
* VT TYPE = SVT (standard VT)
*************************************************************
**************** SVT Library of Typical Case *****************
.LIB TT_svt
.param sdvtncorn = 0
.param sdvtpcorn = 0
** Need these defined since the parameters created for MC are
* in the sub-circuit
** Sub-circuit will therefore, over-ride ‘tox, dxl, dxw, dvth,
* cj, cjsw, cjswn, cgo, cgl’ in this LIB.
** g[np]sigma is always 0 when using fixed corners
.param gnmean = 0
.param gpmean = 0
.param gnsigma = 0
.param gpsigma = 0
*
.param
+toxn_svt = 1.0800E-09
dxln_svt = 0
+dxwn_svt = 0
dvthn_svt = 0
+cjn_svt = 3.2010E-03
cjswn_svt = 1.0000E-14
+cjswgn_svt = 1.9383E-10
cgon_svt = 1.5000E-11
+cgln_svt = 1.0000E-11
drdswn_svt = 0
.param
+toxp_svt = 1.1398E-09
dxlp_svt = 0
+dxwp_svt = 0
dvthp_svt = 0
+cjp_svt = 3.9056E-03
cjswp_svt = 1.0000E-14
+cjswgp_svt = 2.5218E-10
cgop_svt = 3.3205E-12
+cglp_svt = 6.4850E-12
drdswp_svt = 0
*
.lib ‘ex1mod0p1.l’ SUBCKTS_SVT
.ENDL TT_svt
********** SVT Library of SNSP Corner Case with RDD **********
