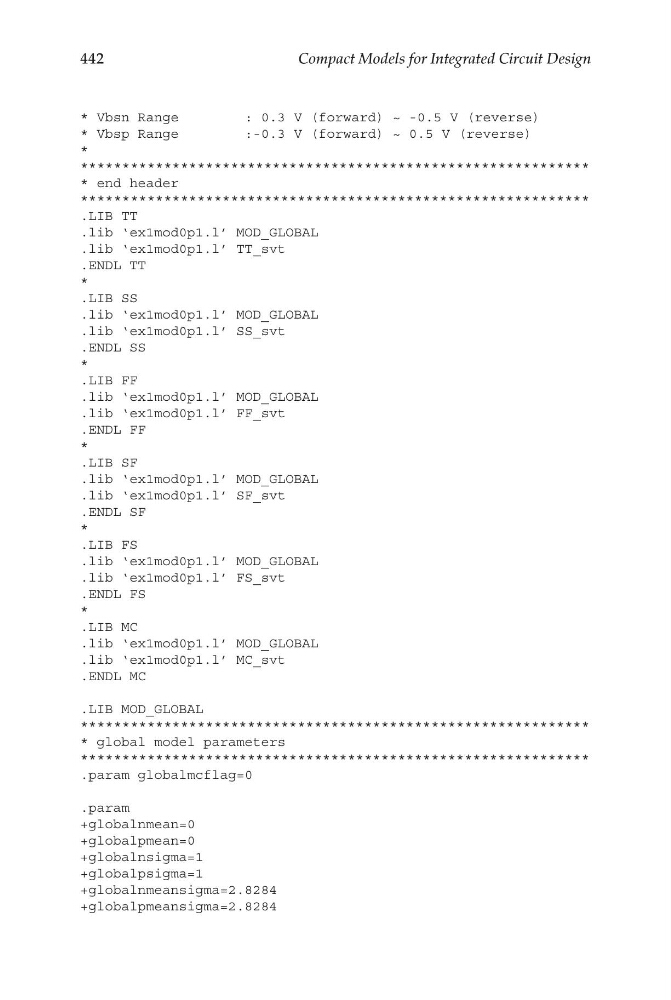

* Vbsn Range
: 0.3 V (forward) ~ -0.5 V (reverse)
* Vbsp Range
:-0.3 V (forward) ~ 0.5 V (reverse)
*
*************************************************************
* end header
*************************************************************
.LIB TT
.lib ‘ex1mod0p1.l’ MOD_GLOBAL
.lib ‘ex1mod0p1.l’ TT_svt
.ENDL TT
*
.LIB SS
.lib ‘ex1mod0p1.l’ MOD_GLOBAL
.lib ‘ex1mod0p1.l’ SS_svt
.ENDL SS
*
.LIB FF
.lib ‘ex1mod0p1.l’ MOD_GLOBAL
.lib ‘ex1mod0p1.l’ FF_svt
.ENDL FF
*
.LIB SF
.lib ‘ex1mod0p1.l’ MOD_GLOBAL
.lib ‘ex1mod0p1.l’ SF_svt
.ENDL SF
*
.LIB FS
.lib ‘ex1mod0p1.l’ MOD_GLOBAL
.lib ‘ex1mod0p1.l’ FS_svt
.ENDL FS
*
.LIB MC
.lib ‘ex1mod0p1.l’ MOD_GLOBAL
.lib ‘ex1mod0p1.l’ MC_svt
.ENDL MC
.LIB MOD_GLOBAL
*************************************************************
* global model parameters
*************************************************************
.param globalmcflag=0
.param
+globalnmean=0
+globalpmean=0
+globalnsigma=1
+globalpsigma=1
+globalnmeansigma=2.8284
+globalpmeansigma=2.8284
