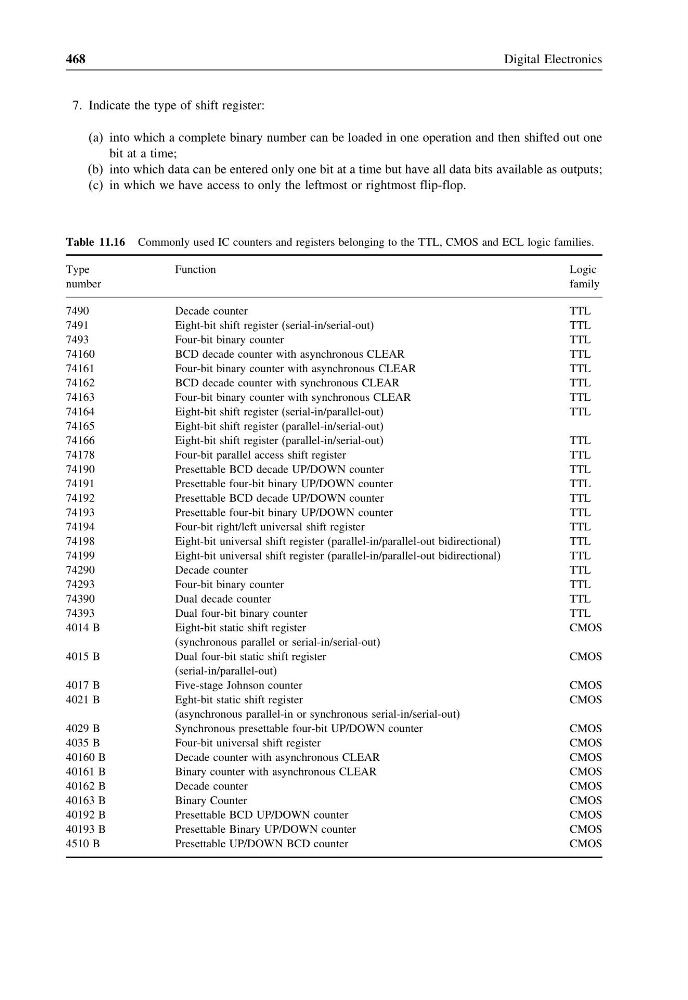

468
Digital Electronics
7. Indicate the type of shift register:
(a) into which a complete binary number can be loaded in one operation and then shifted out one
bit at a time;
(b) into which data can be entered only one bit at a time but have all data bits available as outputs;
(c) in which we have access to only the leftmost or rightmost flip-flop.
Table 11.16 Commonly used IC counters and registers belonging to the TTL, CMOS and ECL logic families.
Type
Function
Logic
number
family
7490
Decade counter
TTL
7491
Eight-bit shift register (serial-in/serial-out)
TTL
7493
Four-bit binary counter
TTL
74160
BCD decade counter with asynchronous CLEAR
TTL
74161
Four-bit binary counter with asynchronous CLEAR
TTL
74162
BCD decade counter with synchronous CLEAR
TTL
74163
Four-bit binary counter with synchronous CLEAR
TTL
74164
Eight-bit shift register (serial-in/parallel-out)
TTL
74165
Eight-bit shift register (parallel-in/serial-out)
74166
Eight-bit shift register (parallel-in/serial-out)
TTL
74178
Four-bit parallel access shift register
TTL
74190
Presettable BCD decade UP/DOWN counter
TTL
74191
Presettable four-bit binary UP/DOWN counter
TTL
74192
Presettable BCD decade UP/DOWN counter
TTL
74193
Presettable four-bit binary UP/DOWN counter
TTL
74194
Four-bit right/left universal shift register
TTL
74198
Eight-bit universal shift register (parallel-in/parallel-out bidirectional)
TTL
74199
Eight-bit universal shift register (parallel-in/parallel-out bidirectional)
TTL
74290
Decade counter
TTL
74293
Four-bit binary counter
TTL
74390
Dual decade counter
TTL
74393
Dual four-bit binary counter
TTL
4014 B
Eight-bit static shift register
CMOS
(synchronous parallel or serial-in/serial-out)
4015 B
Dual four-bit static shift register
CMOS
(serial-in/parallel-out)
4017 B
Five-stage Johnson counter
CMOS
4021 B
Eght-bit static shift register
CMOS
(asynchronous parallel-in or synchronous serial-in/serial-out)
4029 B
Synchronous presettable four-bit UP/DOWN counter
CMOS
4035 B
Four-bit universal shift register
CMOS
40160 B
Decade counter with asynchronous CLEAR
CMOS
40161 B
Binary counter with asynchronous CLEAR
CMOS
40162 B
Decade counter
CMOS
40163 B
Binary Counter
CMOS
40192 B
Presettable BCD UP/DOWN counter
CMOS
40193 B
Presettable Binary UP/DOWN counter
CMOS
4510 B
Presettable UP/DOWN BCD counter
CMOS
