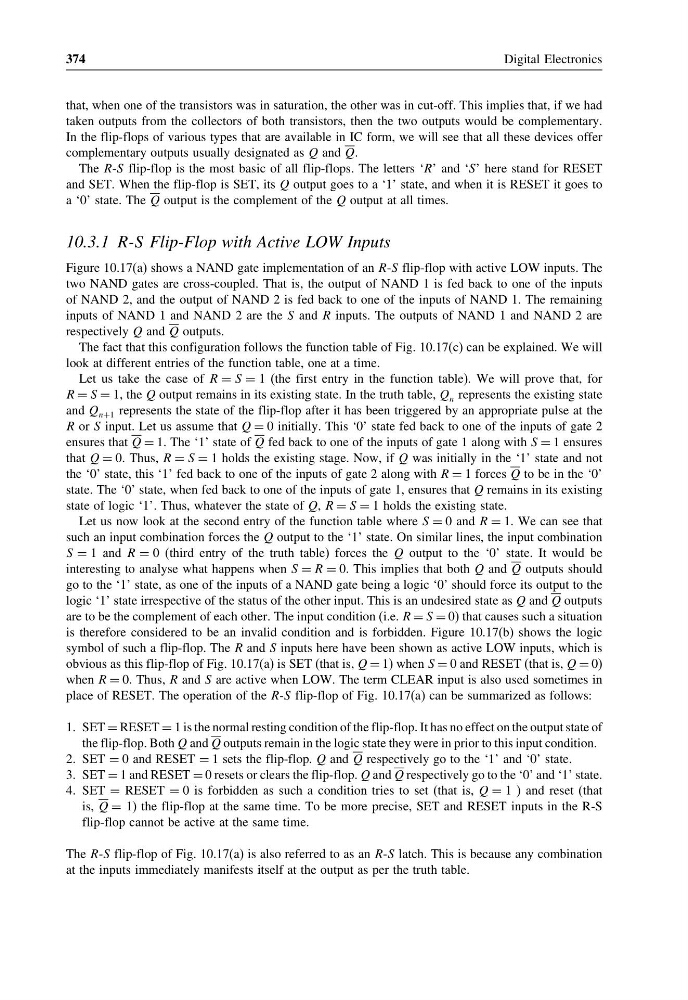

374
Digital Electronics
that, when one of the transistors was in saturation, the other was in cut-off. This implies that, if we had
taken outputs from the collectors of both transistors, then the two outputs would be complementary.
In the flip-flops of various types that are available in IC form, we will see that all these devices offer
complementary outputs usually designated as Q and QQ
The R-S flip-flop is the most basic of all flip-flops. The letters ‘R’ and ‘S’ here stand for RESET
and SET. When the flip-flop is SET, its Q output goes to a ‘1’ state, and when it is RESET it goes to
a ‘0’ state. The Q output is the complement of the Q output at all times.
10.3.1 R-S Flip-Flop with Active LOW Inputs
Figure 10.17(a) shows a NAND gate implementation of an R-S flip-flop with active LOW inputs. The
two NAND gates are cross-coupled. That is, the output of NAND 1 is fed back to one of the inputs
of NAND 2, and the output of NAND 2 is fed back to one of the inputs of NAND 1. The remaining
inputs of NAND 1 and NAND 2 are the S and R inputs. The outputs of NAND 1 and NAND 2 are
respectively Q and Q outputs.
The fact that this configuration follows the function table of Fig. 10.17(c) can be explained. We will
look at different entries of the function table, one at a time.
Let us take the case of R = S = 1 (the first entry in the function table). We will prove that, for
R = S = 1, the Q output remains in its existing state. In the truth table, Q n represents the existing state
and Q n+1 represents the state of the flip-flop after it has been triggered by an appropriate pulse at the
R or S input. Let us assume that Q = 0 initially. This ‘0’ state fed back to one of the inputs of gate 2
ensures that Q = 1. The ‘1’ state of Q fed back to one of the inputs of gate 1 along with S = 1 ensures
that Q = 0. Thus, R = S = 1 holds the existing stage. Now, if Q was initially in the ‘1’ state and not
the ‘0’ state, this ‘1’ fed back to one of the inputs of gate 2 along with R = 1 forces Q to be in the ‘0’
state. The ‘0’ state, when fed back to one of the inputs of gate 1, ensures that Q remains in its existing
state of logic ‘1’. Thus, whatever the state of Q, R = S = 1 holds the existing state.
Let us now look at the second entry of the function table where S = 0 and R = 1. We can see that
such an input combination forces the Q output to the ‘1’ state. On similar lines, the input combination
S = 1 and R = 0 (third entry of the truth table) forces the Q output to the ‘0’ state. It would be
interesting to analyse what happens when S = R = 0. This implies that both Q and Q outputs should
go to the ‘1’ state, as one of the inputs of a NAND gate being a logic ‘0’ should force its output to the
logic ‘1’ state irrespective of the status of the other input. This is an undesired state as Q and Q outputs
are to be the complement of each other. The input condition (i.e. R = S = 0) that causes such a situation
is therefore considered to be an invalid condition and is forbidden. Figure 10.17(b) shows the logic
symbol of such a flip-flop. The R and S inputs here have been shown as active LOW inputs, which is
obvious as this flip-flop of Fig. 10.17(a) is SET (that is, Q = 1) when S = 0 and RESET (that is, Q = 0)
when R = 0. Thus, R and S are active when LOW. The term CLEAR input is also used sometimes in
place of RESET. The operation of the R-S flip-flop of Fig. 10.17(a) can be summarized as follows:
1. SET = RESET = 1 is the normal resting condition of the flip-flop. It has no effect on the output state of
the flip-flop. Both Q and Q outputs remain in the logic state they were in prior to this input condition.
2. SET = 0 and RESET = 1 sets the flip-flop. Q and Q respectively go to the ‘1’ and ‘0’ state.
3. SET = 1 and RESET = 0 resets or clears the flip-flop. Q and Q respectively go to the ‘0’ and ‘1’ state.
4. SET = RESET = 0 is forbidden as such a condition tries to set (that is, Q = 1 ) and reset (that
is, Q = 1) the flip-flop at the same time. To be more precise, SET and RESET inputs in the R-S
flip-flop cannot be active at the same time.
The R-S flip-flop of Fig. 10.17(a) is also referred to as an R-S latch. This is because any combination
at the inputs immediately manifests itself at the output as per the truth table.
