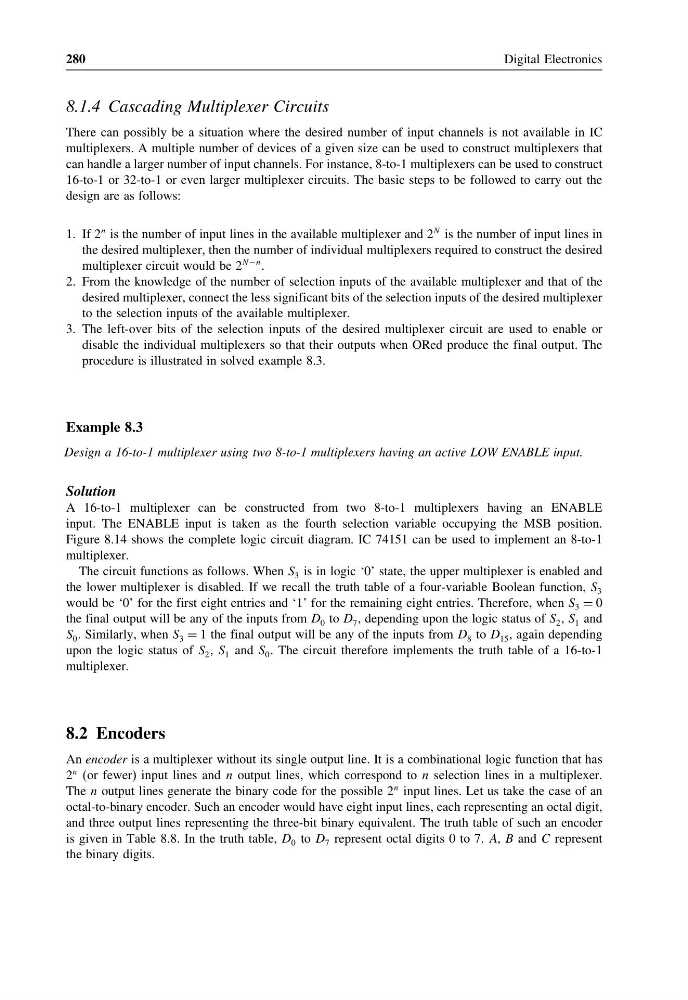

280
Digital Electronics
8.1.4 Cascading Multiplexer Circuits
There can possibly be a situation where the desired number of input channels is not available in IC
multiplexers. A multiple number of devices of a given size can be used to construct multiplexers that
can handle a larger number of input channels. For instance, 8-to-1 multiplexers can be used to construct
16-to-1 or 32-to-1 or even larger multiplexer circuits. The basic steps to be followed to carry out the
design are as follows:
1. If 2
n is the number of input lines in the available multiplexer and 2
N is the number of input lines in
the desired multiplexer, then the number of individual multiplexers required to construct the desired
multiplexer circuit would be 2
N −n .
2. From the knowledge of the number of selection inputs of the available multiplexer and that of the
desired multiplexer, connect the less significant bits of the selection inputs of the desired multiplexer
to the selection inputs of the available multiplexer.
3. The left-over bits of the selection inputs of the desired multiplexer circuit are used to enable or
disable the individual multiplexers so that their outputs when ORed produce the final output. The
procedure is illustrated in solved example 8.3.
Example 8.3
Design a 16-to-1 multiplexer using two 8-to-1 multiplexers having an active LOW ENABLE input.
Solution
A 16-to-1 multiplexer can be constructed from two 8-to-1 multiplexers having an ENABLE
input. The ENABLE input is taken as the fourth selection variable occupying the MSB position.
Figure 8.14 shows the complete logic circuit diagram. IC 74151 can be used to implement an 8-to-1
multiplexer.
The circuit functions as follows. When S 3 is in logic ‘0’ state, the upper multiplexer is enabled and
the lower multiplexer is disabled. If we recall the truth table of a four-variable Boolean function, S 3
would be ‘0’ for the first eight entries and ‘1’ for the remaining eight entries. Therefore, when S 3 = 0
the final output will be any of the inputs from D 0 to D 7 , depending upon the logic status of S 2 , S 1 and
S 0 . Similarly, when S 3 = 1 the final output will be any of the inputs from D 8 to D 15 , again depending
upon the logic status of S 2 , S 1 and S 0 . The circuit therefore implements the truth table of a 16-to-1
multiplexer.
8.2 Encoders
An encoder is a multiplexer without its single output line. It is a combinational logic function that has
2
n (or fewer) input lines and n output lines, which correspond to n selection lines in a multiplexer.
The n output lines generate the binary code for the possible 2
n input lines. Let us take the case of an
octal-to-binary encoder. Such an encoder would have eight input lines, each representing an octal digit,
and three output lines representing the three-bit binary equivalent. The truth table of such an encoder
is given in Table 8.8. In the truth table, D 0 to D 7 represent octal digits 0 to 7. A, B and C represent
the binary digits.
