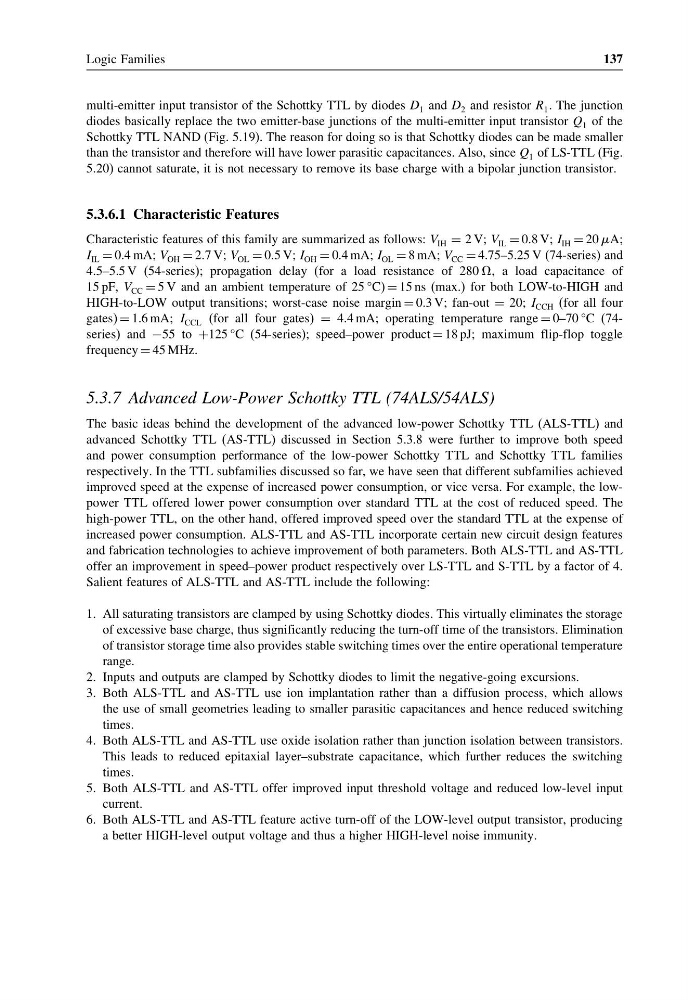

multi-emitter input transistor of the Schottky TTL by diodes D 1 and D 2 and resistor R 1 . The junction
diodes basically replace the two emitter-base junctions of the multi-emitter input transistor Q 1 of the
Schottky TTL NAND (Fig. 5.19). The reason for doing so is that Schottky diodes can be made smaller
than the transistor and therefore will have lower parasitic capacitances. Also, since Q 1 of LS-TTL (Fig.
5.20) cannot saturate, it is not necessary to remove its base charge with a bipolar junction transistor.
5.3.6.1 Characteristic Features
Characteristic features of this family are summarized as follows: V IH = 2 V; V IL = 0.8 V; I IH = 20 A;
I IL = 0.4 mA; V OH = 2.7 V; V OL = 0.5 V; I OH = 0.4 mA; I OL = 8 mA; V CC = 4.75–5.25 V (74-series) and
4.5–5.5 V (54-series); propagation delay (for a load resistance of 280 , a load capacitance of
15 pF, V CC = 5 V and an ambient temperature of 25 °C) = 15 ns (max.) for both LOW-to-HIGH and
HIGH-to-LOW output transitions; worst-case noise margin = 0.3 V; fan-out = 20; I CCH (for all four
gates) = 1.6 mA; I CCL (for all four gates) = 4.4 mA; operating temperature range = 0–70 °C (74series) and −55 to +125 °C (54-series); speed–power product = 18 pJ; maximum flip-flop toggle
frequency = 45 MHz.
5.3.7 Advanced Low-Power Schottky TTL (74ALS/54ALS)
The basic ideas behind the development of the advanced low-power Schottky TTL (ALS-TTL) and
advanced Schottky TTL (AS-TTL) discussed in Section 5.3.8 were further to improve both speed
and power consumption performance of the low-power Schottky TTL and Schottky TTL families
respectively. In the TTL subfamilies discussed so far, we have seen that different subfamilies achieved
improved speed at the expense of increased power consumption, or vice versa. For example, the lowpower TTL offered lower power consumption over standard TTL at the cost of reduced speed. The
high-power TTL, on the other hand, offered improved speed over the standard TTL at the expense of
increased power consumption. ALS-TTL and AS-TTL incorporate certain new circuit design features
and fabrication technologies to achieve improvement of both parameters. Both ALS-TTL and AS-TTL
offer an improvement in speed–power product respectively over LS-TTL and S-TTL by a factor of 4.
Salient features of ALS-TTL and AS-TTL include the following:
1. All saturating transistors are clamped by using Schottky diodes. This virtually eliminates the storage
of excessive base charge, thus significantly reducing the turn-off time of the transistors. Elimination
of transistor storage time also provides stable switching times over the entire operational temperature
range.
2. Inputs and outputs are clamped by Schottky diodes to limit the negative-going excursions.
3. Both ALS-TTL and AS-TTL use ion implantation rather than a diffusion process, which allows
the use of small geometries leading to smaller parasitic capacitances and hence reduced switching
times.
4. Both ALS-TTL and AS-TTL use oxide isolation rather than junction isolation between transistors.
This leads to reduced epitaxial layer–substrate capacitance, which further reduces the switching
times.
5. Both ALS-TTL and AS-TTL offer improved input threshold voltage and reduced low-level input
current.
6. Both ALS-TTL and AS-TTL feature active turn-off of the LOW-level output transistor, producing
a better HIGH-level output voltage and thus a higher HIGH-level noise immunity.
