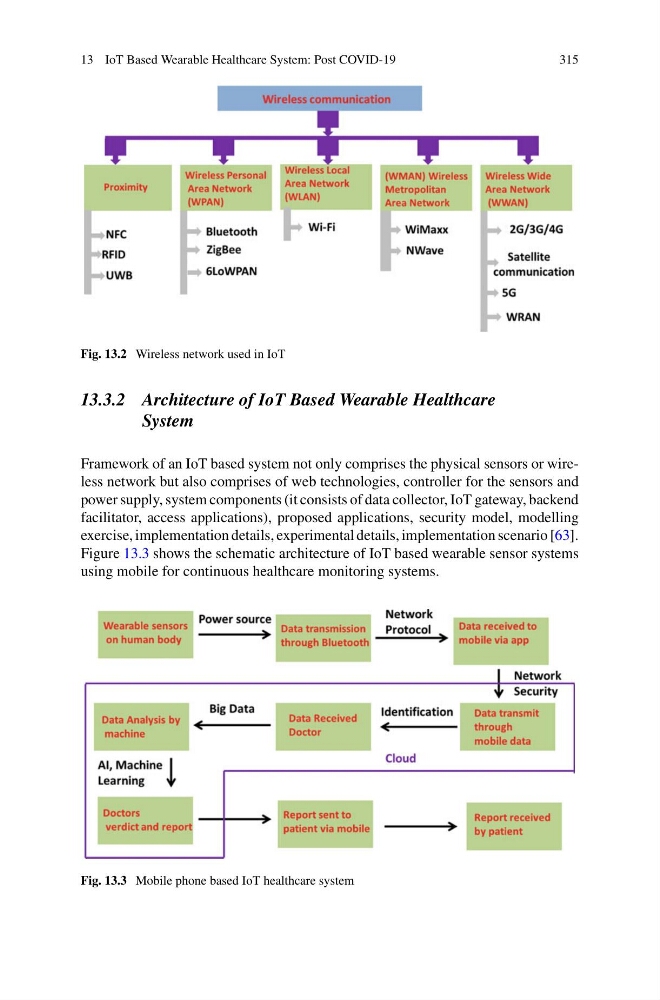

13 IoT Based Wearable Healthcare System: Post COVID-19
315
Fig. 13.2 Wireless network used in IoT
13.3.2 Architecture of IoT Based Wearable Healthcare
System
Framework of an IoT based system not only comprises the physical sensors or wireless network but also comprises of web technologies, controller for the sensors and
power supply, system components (it consists of data collector, IoT gateway, backend
facilitator, access applications), proposed applications, security model, modelling
exercise, implementation details, experimental details, implementation scenario [63].
Figure 13.3 shows the schematic architecture of IoT based wearable sensor systems
using mobile for continuous healthcare monitoring systems.
Fig. 13.3 Mobile phone based IoT healthcare system
