flow of the material as a result of shear stress through the thickness of the material
during the material processing. The skin layer of the LCPs shows an overall
anisotropic behavior. This investigation clearly indicates that the molecular orientation and anisotropy in the LCPs have a direct correlation with the method of
manufacturing.
Spinning is another common practice for the fabrication of commercial LCPbased high strength fibers. Compared to the traditional method of spinning, viscous
solution based rayon and aramid fibers are characterized by a high degree of
molecular orientation. The molecular orientation results from liquid crystallinity of
the polymer solution used through the spinning process. The nematic solutions are
spun in the dry jet air gap technique as shown in Fig. 15. This process directs

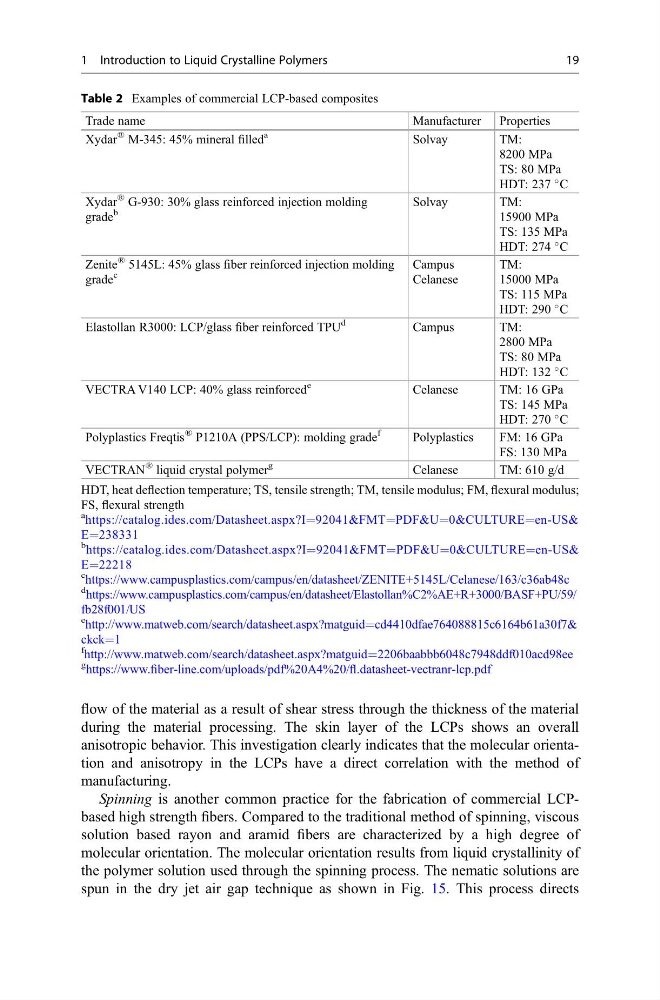

Table 2 Examples of commercial LCP-based composites
Trade name
Manufacturer Properties
Xydar
® M-345: 45% mineral filled
a
Solvay
TM:
8200 MPa
TS: 80 MPa
HDT: 237
C
Xydar
® G-930: 30% glass reinforced injection molding
grade
b
Solvay
TM:
15900 MPa
TS: 135 MPa
HDT: 274
C
Zenite
® 5145L: 45% glass fiber reinforced injection molding
grade
c
Campus
Celanese
TM:
15000 MPa
TS: 115 MPa
HDT: 290
C
Elastollan R3000: LCP/glass fiber reinforced TPU
d
Campus
TM:
2800 MPa
TS: 80 MPa
HDT: 132
C
VECTRA V140 LCP: 40% glass reinforced
e
Celanese
TM: 16 GPa
TS: 145 MPa
HDT: 270
C
Polyplastics Freqtis
® P1210A (PPS/LCP): molding grade
f
Polyplastics
FM: 16 GPa
FS: 130 MPa
VECTRAN
® liquid crystal polymer
g
Celanese
TM: 610 g/d
HDT, heat deflection temperature; TS, tensile strength; TM, tensile modulus; FM, flexural modulus;
FS, flexural strength
a https://catalog.ides.com/Datasheet.aspx?I¼92041&FMT¼PDF&U¼0&CULTURE¼en-US&
E¼238331
b
https://catalog.ides.com/Datasheet.aspx?I¼92041&FMT¼PDF&U¼0&CULTURE¼en-US&
E¼22218
c https://www.campusplastics.com/campus/en/datasheet/ZENITE+5145L/Celanese/163/c36ab48c
d
https://www.campusplastics.com/campus/en/datasheet/Elastollan%C2%AE+R+3000/BASF+PU/59/
fb28f001/US
e http://www.matweb.com/search/datasheet.aspx?matguid¼cd4410dfae764088815c6164b61a30f7&
ckck¼1
f
http://www.matweb.com/search/datasheet.aspx?matguid¼2206baabbb6048c7948ddf010acd98ee
g
https://www.fiber-line.com/uploads/pdf%20A4%20/fl.datasheet-vectranr-lcp.pdf
1 Introduction to Liquid Crystalline Polymers
19
