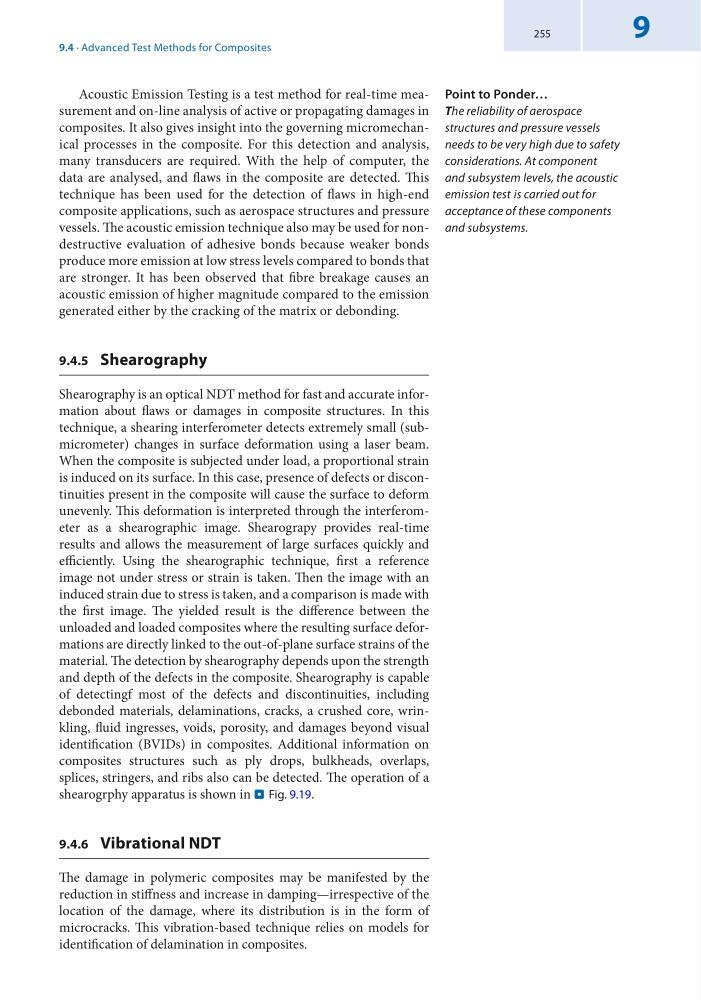

Acoustic Emission Testing is a test method for real-time measurement and on-line analysis of active or propagating damages in
composites. It also gives insight into the governing micromechanical processes in the composite. For this detection and analysis,
many transducers are required. With the help of computer, the
data are analysed, and flaws in the composite are detected. This
technique has been used for the detection of flaws in high-end
composite applications, such as aerospace structures and pressure
vessels. The acoustic emission technique also may be used for nondestructive evaluation of adhesive bonds because weaker bonds
produce more emission at low stress levels compared to bonds that
are stronger. It has been observed that fibre breakage causes an
acoustic emission of higher magnitude compared to the emission
generated either by the cracking of the matrix or debonding.
9.4.5 Shearography
Shearography is an optical NDT method for fast and accurate information about flaws or damages in composite structures. In this
technique, a shearing interferometer detects extremely small (submicrometer) changes in surface deformation using a laser beam.
When the composite is subjected under load, a proportional strain
is induced on its surface. In this case, presence of defects or discontinuities present in the composite will cause the surface to deform
unevenly. This deformation is interpreted through the interferometer as a shearographic image. Shearograpy provides real-time
results and allows the measurement of large surfaces quickly and
efficiently. Using the shearographic technique, first a reference
image not under stress or strain is taken. Then the image with an
induced strain due to stress is taken, and a comparison is made with
the first image. The yielded result is the difference between the
unloaded and loaded composites where the resulting surface deformations are directly linked to the out-of-plane surface strains of the
material. The detection by shearography depends upon the strength
and depth of the defects in the composite. Shearography is capable
of detectingf most of the defects and discontinuities, including
debonded materials, delaminations, cracks, a crushed core, wrinkling, fluid ingresses, voids, porosity, and damages beyond visual
identification (BVIDs) in composites. Additional information on
composites structures such as ply drops, bulkheads, overlaps,
splices, stringers, and ribs also can be detected. The operation of a
shearogrphy apparatus is shown in . Fig. 9.19.
9.4.6 Vibrational NDT
The damage in polymeric composites may be manifested by the
reduction in stiffness and increase in damping—irrespective of the
location of the damage, where its distribution is in the form of
microcracks. This vibration-based technique relies on models for
identification of delamination in composites.
Point to Ponder…
The reliability of aerospace
structures and pressure vessels
needs to be very high due to safety
considerations. At component
and subsystem levels, the acoustic
emission test is carried out for
acceptance of these components
and subsystems.
