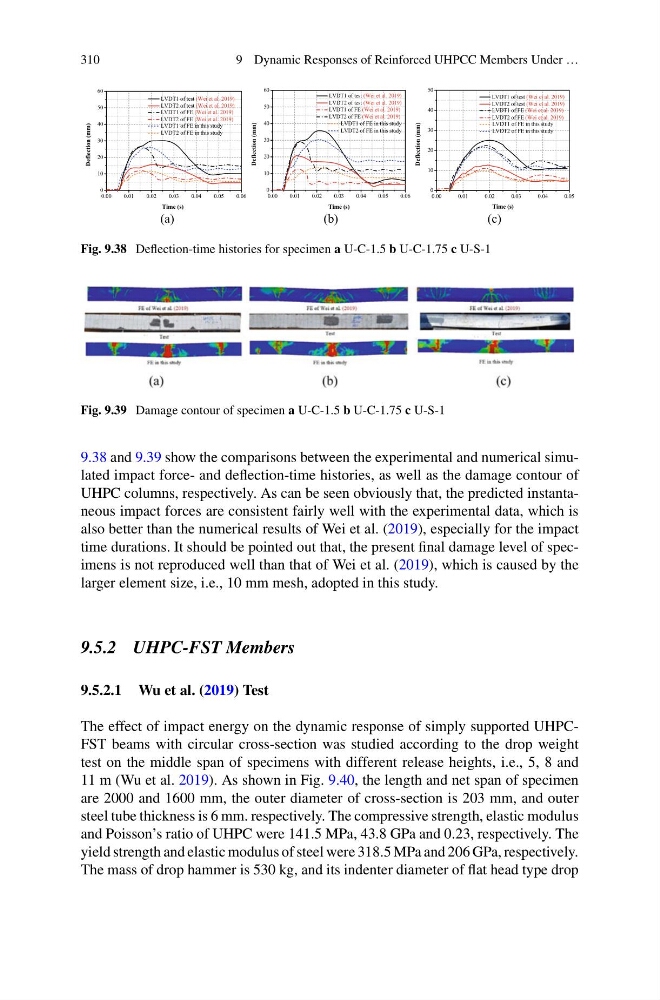

Fig. 9.38 Deflection-time histories for specimen a U-C-1.5 b U-C-1.75 c U-S-1
Fig. 9.39 Damage contour of specimen a U-C-1.5 b U-C-1.75 c U-S-1
9.38 and 9.39 show the comparisons between the experimental and numerical simulated impact force- and deflection-time histories, as well as the damage contour of
UHPC columns, respectively. As can be seen obviously that, the predicted instantaneous impact forces are consistent fairly well with the experimental data, which is
also better than the numerical results of Wei et al. (2019), especially for the impact
time durations. It should be pointed out that, the present final damage level of specimens is not reproduced well than that of Wei et al. (2019), which is caused by the
larger element size, i.e., 10 mm mesh, adopted in this study.
9.5.2 UHPC-FST Members
