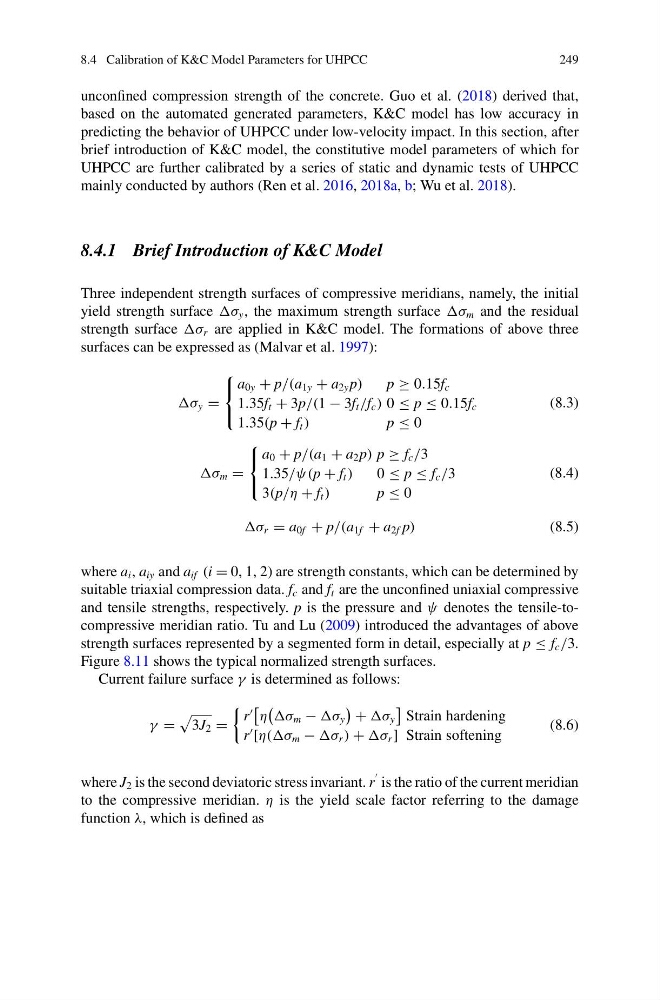

8.4 Calibration of K&C Model Parameters for UHPCC
249
unconfined compression strength of the concrete. Guo et al. (2018) derived that,
based on the automated generated parameters, K&C model has low accuracy in
predicting the behavior of UHPCC under low-velocity impact. In this section, after
brief introduction of K&C model, the constitutive model parameters of which for
UHPCC are further calibrated by a series of static and dynamic tests of UHPCC
mainly conducted by authors (Ren et al. 2016, 2018a, b; Wu et al. 2018).
8.4.1 Brief Introduction of K&C Model
Three independent strength surfaces of compressive meridians, namely, the initial
yield strength surface σ y , the maximum strength surface σ m and the residual
strength surface σ r are applied in K&C model. The formations of above three
surfaces can be expressed as (Malvar et al. 1997):
σ y =
⎧
⎨
⎩
a 0y + p/(a 1y + a 2y p)
p ≥ 0.15f c
1.35f t + 3p/(1 − 3f t /f c ) 0 ≤ p ≤ 0.15f c
1.35(p + f t )
p ≤ 0
(8.3)
σ m =
⎧
⎨
⎩
a 0 + p/(a 1 + a 2 p) p ≥ f c /3
1.35/ψ(p + f t )
0 ≤ p ≤ f c /3
3(p/η + f t )
p ≤ 0
(8.4)
σ r = a 0f + p/(a 1f + a 2f p)
(8.5)
where a i , a iy and a if (i = 0, 1, 2) are strength constants, which can be determined by
suitable triaxial compression data. f c and f t are the unconfined uniaxial compressive
and tensile strengths, respectively. p is the pressure and ψ denotes the tensile-tocompressive meridian ratio. Tu and Lu (2009) introduced the advantages of above
strength surfaces represented by a segmented form in detail, especially at p ≤ f c /3.
Figure 8.11 shows the typical normalized strength surfaces.
Current failure surface γ is determined as follows:
γ =
3J 2 =
r
η
σ m − σ y
+ σ y
Strain hardening
r
[η(σ m − σ r ) + σ r ] Strain softening
(8.6)
where J 2 is the second deviatoric stress invariant. r
is the ratio of the current meridian
to the compressive meridian. η is the yield scale factor referring to the damage
function λ, which is defined as
