170
6 Impact Resistance of Basalt Aggregated UHP-SFRC/Fabric …

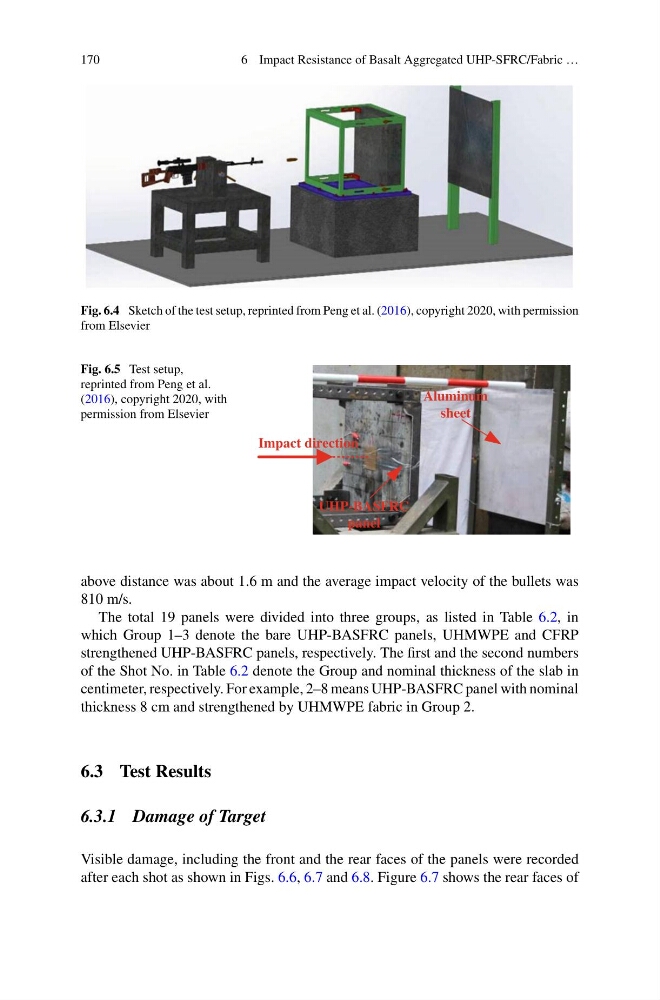

Fig. 6.4 Sketch of the test setup, reprinted from Peng et al. (2016), copyright 2020, with permission
from Elsevier
Fig. 6.5 Test setup,
reprinted from Peng et al.
(2016), copyright 2020, with
permission from Elsevier
Impact direction
UHP-BASFRC
panel
Aluminum
sheet
above distance was about 1.6 m and the average impact velocity of the bullets was
810 m/s.
The total 19 panels were divided into three groups, as listed in Table 6.2, in
which Group 1–3 denote the bare UHP-BASFRC panels, UHMWPE and CFRP
strengthened UHP-BASFRC panels, respectively. The first and the second numbers
of the Shot No. in Table 6.2 denote the Group and nominal thickness of the slab in
centimeter, respectively. For example, 2–8 means UHP-BASFRC panel with nominal
thickness 8 cm and strengthened by UHMWPE fabric in Group 2.
6.3 Test Results
6.3.1 Damage of Target
Visible damage, including the front and the rear faces of the panels were recorded
after each shot as shown in Figs. 6.6, 6.7 and 6.8. Figure 6.7 shows the rear faces of
