6.3 Test Results
171

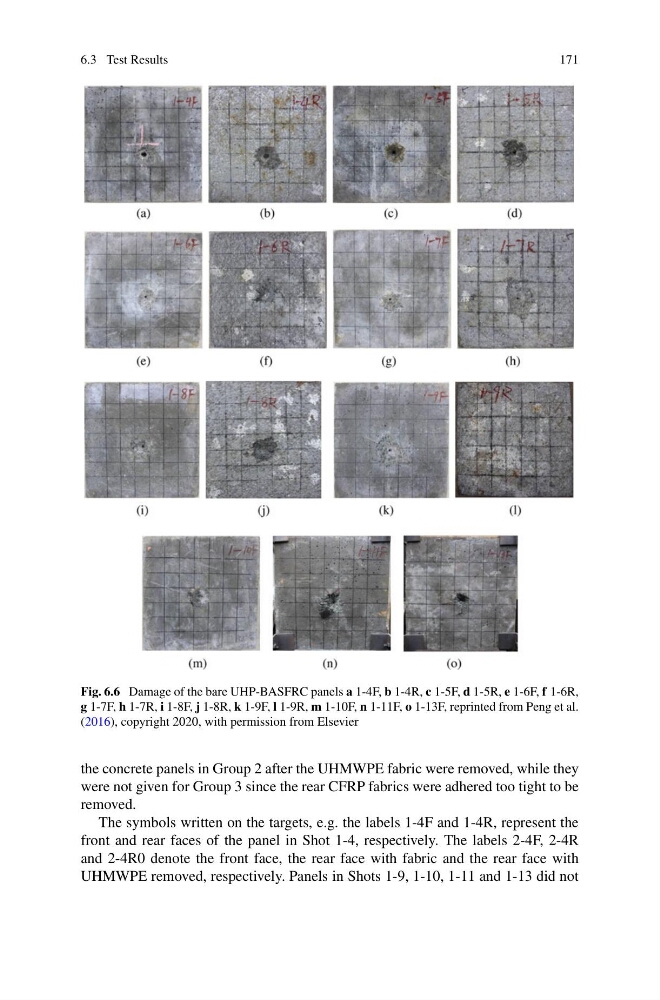

Fig. 6.6 Damage of the bare UHP-BASFRC panels a 1-4F, b 1-4R, c 1-5F, d 1-5R, e 1-6F, f 1-6R,
g 1-7F, h 1-7R, i 1-8F, j 1-8R, k 1-9F, l 1-9R, m 1-10F, n 1-11F, o 1-13F, reprinted from Peng et al.
(2016), copyright 2020, with permission from Elsevier
the concrete panels in Group 2 after the UHMWPE fabric were removed, while they
were not given for Group 3 since the rear CFRP fabrics were adhered too tight to be
removed.
The symbols written on the targets, e.g. the labels 1-4F and 1-4R, represent the
front and rear faces of the panel in Shot 1-4, respectively. The labels 2-4F, 2-4R
and 2-4R0 denote the front face, the rear face with fabric and the rear face with
UHMWPE removed, respectively. Panels in Shots 1-9, 1-10, 1-11 and 1-13 did not
