126
5 Projectile Penetrations into Coarse Aggregated UHPCC Targets
(a)
(b)
(c)
(d)
(e)
(f)
(g)
(h)
(i)
(j)
(k)
(l)
(m)
(n)
(o)
(p)
(q)
(r)

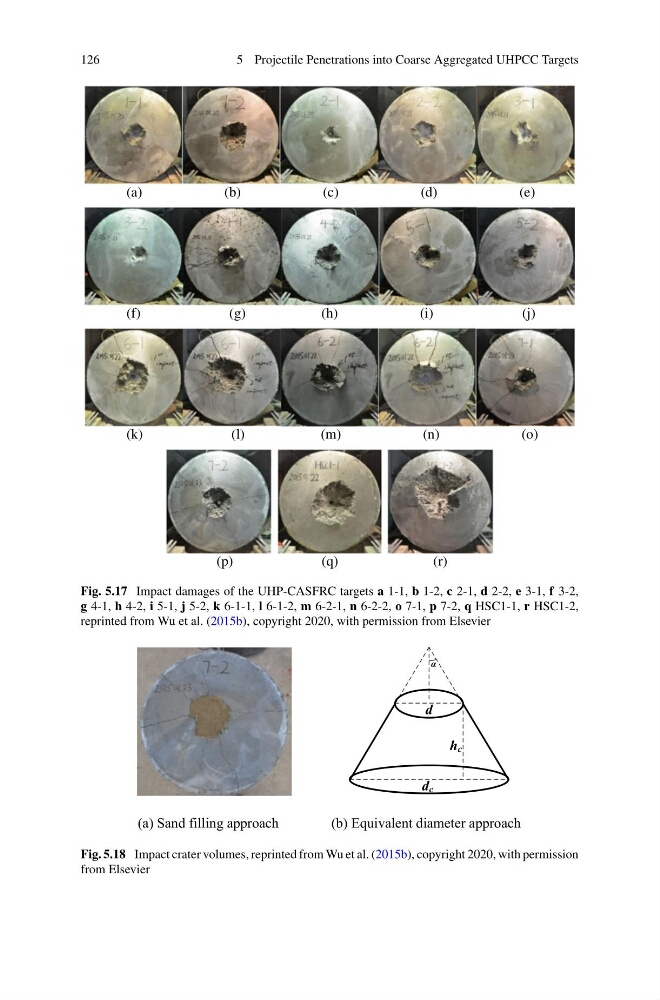

Fig. 5.17 Impact damages of the UHP-CASFRC targets a 1-1, b 1-2, c 2-1, d 2-2, e 3-1, f 3-2,
g 4-1, h 4-2, i 5-1, j 5-2, k 6-1-1, l 6-1-2, m 6-2-1, n 6-2-2, o 7-1, p 7-2, q HSC1-1, r HSC1-2,
reprinted from Wu et al. (2015b), copyright 2020, with permission from Elsevier
d c
d
α
h c
(a) Sand filling approach
(b) Equivalent diameter approach
Fig. 5.18 Impact crater volumes, reprinted from Wu et al. (2015b), copyright 2020, with permission
from Elsevier
