5.2 Basalt Aggregated UHPCC Target
115
(a)
(b)
(c)
(d)
(e)
(f)
(g)
(h)
(i)
(j)

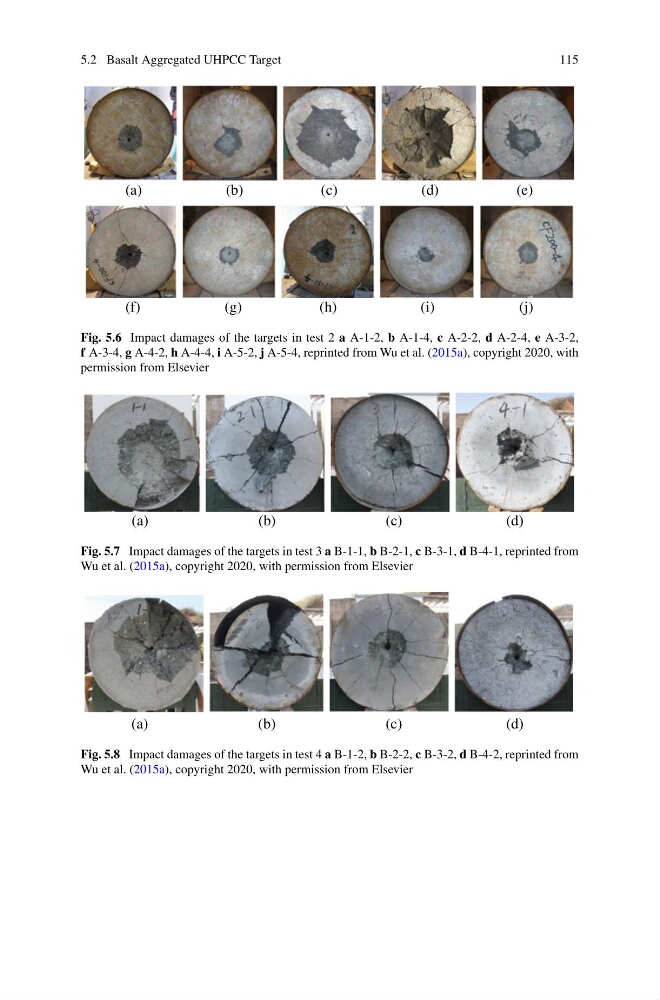

Fig. 5.6 Impact damages of the targets in test 2 a A-1-2, b A-1-4, c A-2-2, d A-2-4, e A-3-2,
f A-3-4, g A-4-2, h A-4-4, i A-5-2, j A-5-4, reprinted from Wu et al. (2015a), copyright 2020, with
permission from Elsevier
(a)
(b)
(c)
(d)
Fig. 5.7 Impact damages of the targets in test 3 a B-1-1, b B-2-1, c B-3-1, d B-4-1, reprinted from
Wu et al. (2015a), copyright 2020, with permission from Elsevier
(a)
(b)
(c)
(d)
Fig. 5.8 Impact damages of the targets in test 4 a B-1-2, b B-2-2, c B-3-2, d B-4-2, reprinted from
Wu et al. (2015a), copyright 2020, with permission from Elsevier
