An Effect of Process Parameter on Physical Appearance …
119

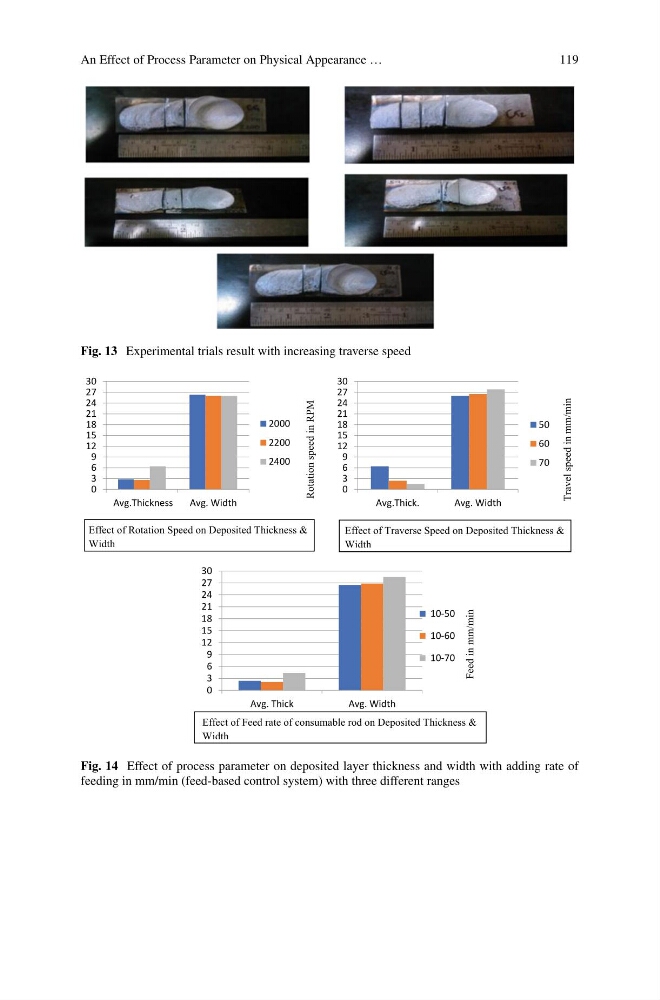

Fig. 13 Experimental trials result with increasing traverse speed
0
3
6
9
12
15
18
21
24
27
30
Avg.Thickness
Avg. Width
2000
2200
2400
0
3
6
9
12
15
18
21
24
27
30
Avg. Thick
Avg. Width
10-50
10-60
10-70
0
3
6
9
12
15
18
21
24
27
30
Avg.Thick.
Avg. Width
50
60
70
Effect of Rotation Speed on Deposited Thickness &
Width
Effect of Traverse Speed on Deposited Thickness &
Width
Effect of Feed rate of consumable rod on Deposited Thickness &
Width
Rotation speed in RPM
Travel speed in mm/min
Feed in mm/min
Fig. 14 Effect of process parameter on deposited layer thickness and width with adding rate of
feeding in mm/min (feed-based control system) with three different ranges
