474
A.-E. Briciu et al.

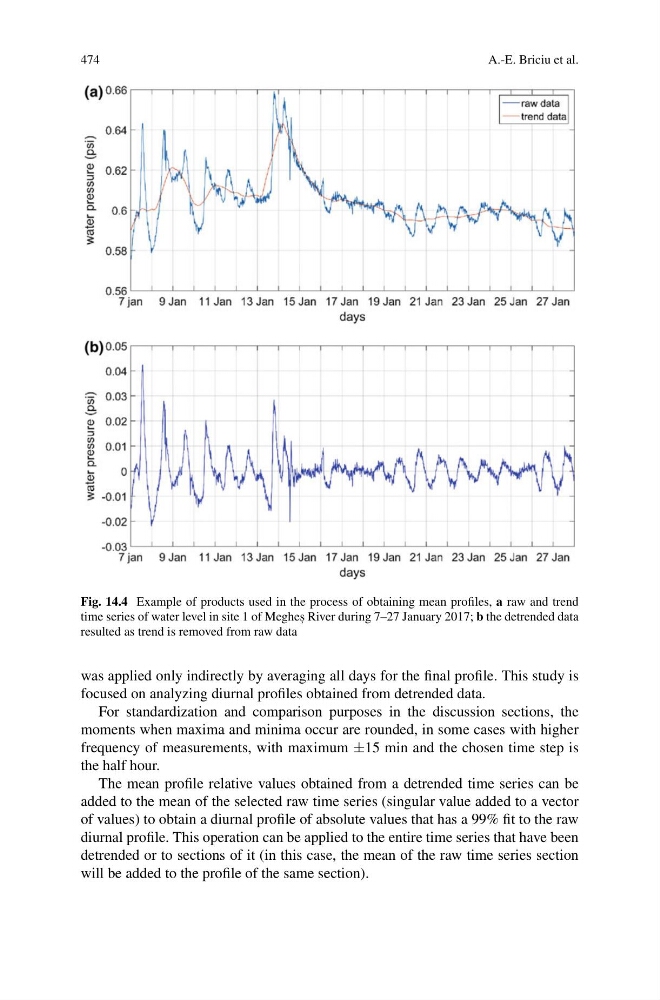

Fig. 14.4 Example of products used in the process of obtaining mean profiles, a raw and trend
time series of water level in site 1 of Meghes , River during 7–27 January 2017; b the detrended data
resulted as trend is removed from raw data
was applied only indirectly by averaging all days for the final profile. This study is
focused on analyzing diurnal profiles obtained from detrended data.
For standardization and comparison purposes in the discussion sections, the
moments when maxima and minima occur are rounded, in some cases with higher
frequency of measurements, with maximum ±15 min and the chosen time step is
the half hour.
The mean profile relative values obtained from a detrended time series can be
added to the mean of the selected raw time series (singular value added to a vector
of values) to obtain a diurnal profile of absolute values that has a 99% fit to the raw
diurnal profile. This operation can be applied to the entire time series that have been
detrended or to sections of it (in this case, the mean of the raw time series section
will be added to the profile of the same section).
