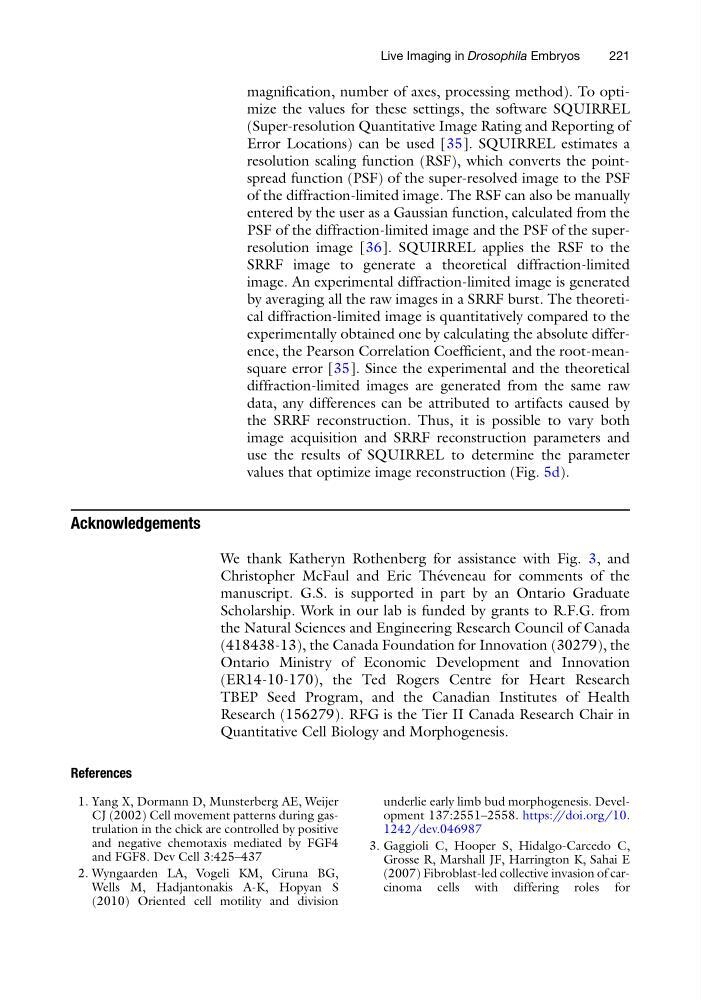

magnification, number of axes, processing method). To optimize the values for these settings, the software SQUIRREL
(Super-resolution Quantitative Image Rating and Reporting of
Error Locations) can be used [35]. SQUIRREL estimates a
resolution scaling function (RSF), which converts the pointspread function (PSF) of the super-resolved image to the PSF
of the diffraction-limited image. The RSF can also be manually
entered by the user as a Gaussian function, calculated from the
PSF of the diffraction-limited image and the PSF of the superresolution image [36]. SQUIRREL applies the RSF to the
SRRF image to generate a theoretical diffraction-limited
image. An experimental diffraction-limited image is generated
by averaging all the raw images in a SRRF burst. The theoretical diffraction-limited image is quantitatively compared to the
experimentally obtained one by calculating the absolute difference, the Pearson Correlation Coefficient, and the root-meansquare error [35]. Since the experimental and the theoretical
diffraction-limited images are generated from the same raw
data, any differences can be attributed to artifacts caused by
the SRRF reconstruction. Thus, it is possible to vary both
image acquisition and SRRF reconstruction parameters and
use the results of SQUIRREL to determine the parameter
values that optimize image reconstruction (Fig. 5d).
