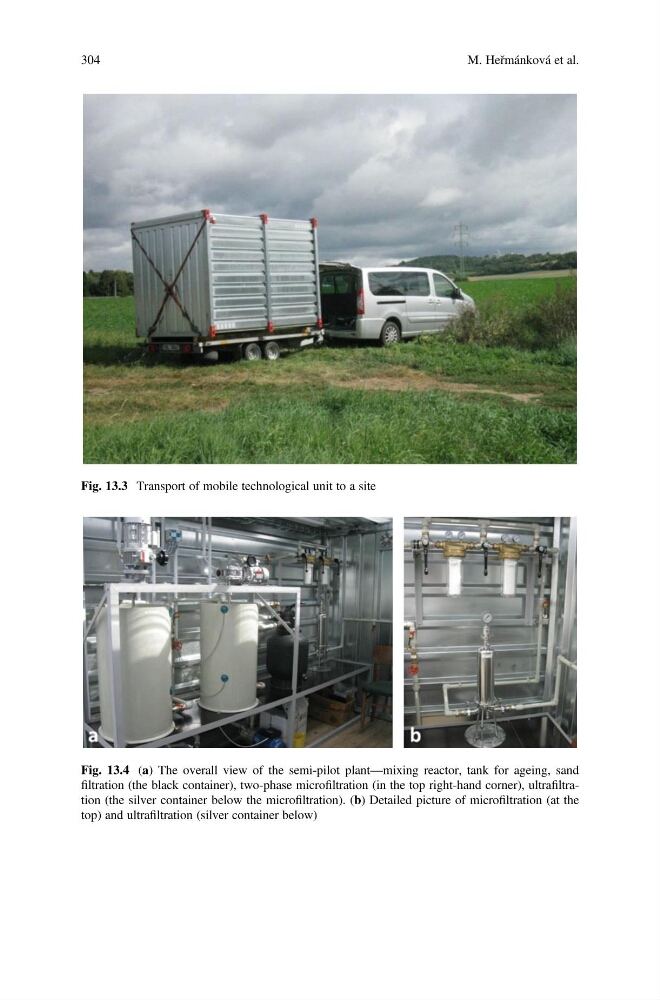

Fig. 13.3 Transport of mobile technological unit to a site
Fig. 13.4 (a) The overall view of the semi-pilot plant—mixing reactor, tank for ageing, sand
filtration (the black container), two-phase microfiltration (in the top right-hand corner), ultrafiltration (the silver container below the microfiltration). (b) Detailed picture of microfiltration (at the
top) and ultrafiltration (silver container below)
