15 Super-Resolution Imaging and Microscopy by Dielectric …
391

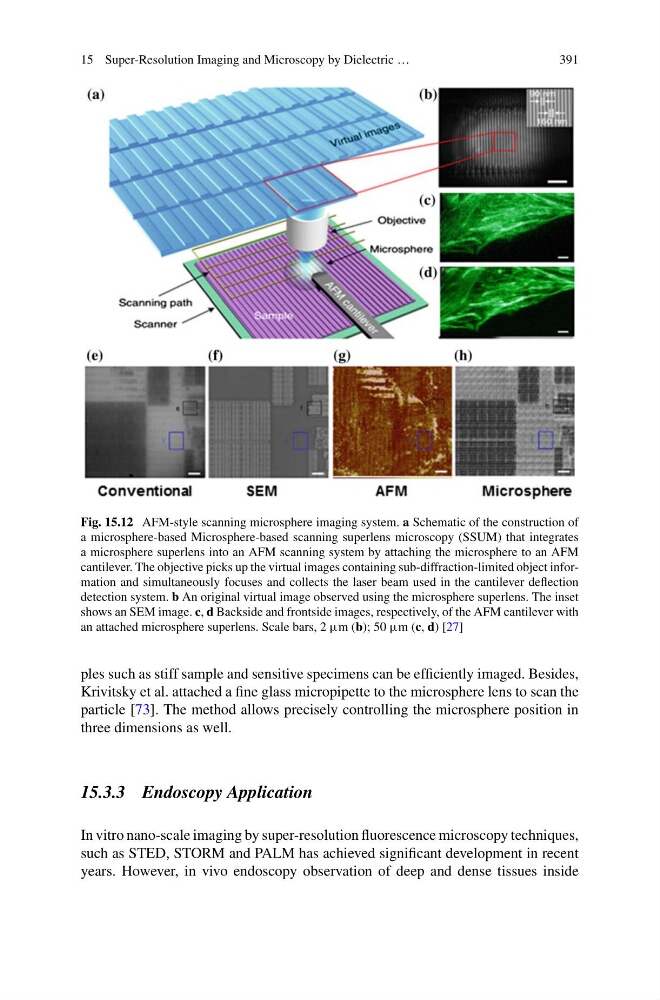

Fig. 15.12 AFM-style scanning microsphere imaging system. a Schematic of the construction of
a microsphere-based Microsphere-based scanning superlens microscopy (SSUM) that integrates
a microsphere superlens into an AFM scanning system by attaching the microsphere to an AFM
cantilever. The objective picks up the virtual images containing sub-diffraction-limited object information and simultaneously focuses and collects the laser beam used in the cantilever deflection
detection system. b An original virtual image observed using the microsphere superlens. The inset
shows an SEM image. c, d Backside and frontside images, respectively, of the AFM cantilever with
an attached microsphere superlens. Scale bars, 2 μm (b); 50 μm (c, d) [27]
ples such as stiff sample and sensitive specimens can be efficiently imaged. Besides,
Krivitsky et al. attached a fine glass micropipette to the microsphere lens to scan the
particle [73]. The method allows precisely controlling the microsphere position in
three dimensions as well.
15.3.3 Endoscopy Application
In vitro nano-scale imaging by super-resolution fluorescence microscopy techniques,
such as STED, STORM and PALM has achieved significant development in recent
years. However, in vivo endoscopy observation of deep and dense tissues inside
