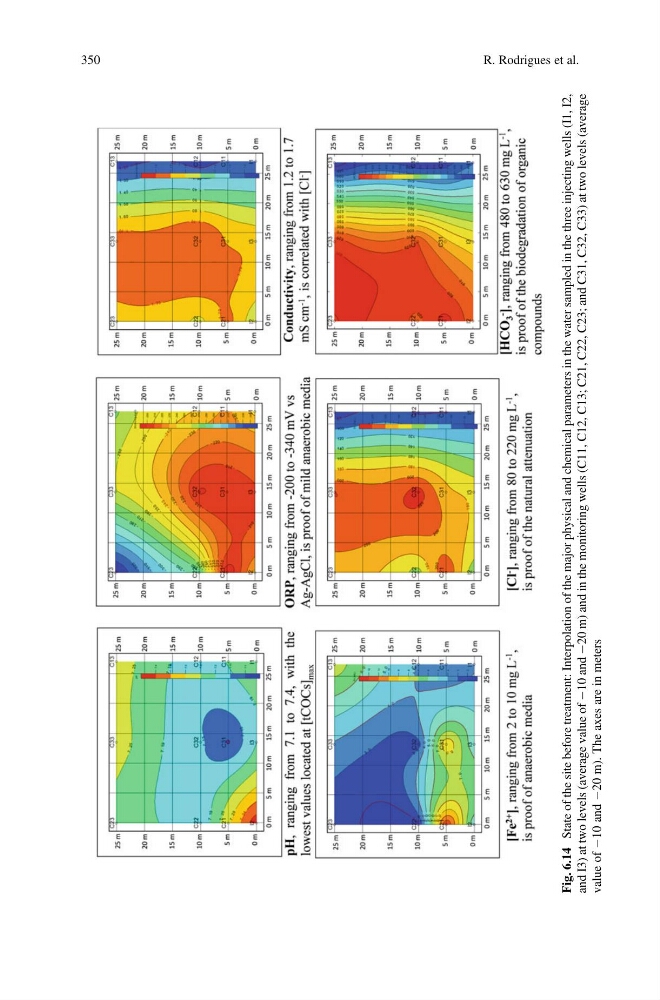

Fig. 6.14
State of the site before treatment: Interpolation of the major physical and chemical parameters in the water sampled in the three injecting wells (I1, I2,
and I3) at two levels (average value of
À10 and
À20 m) and in the monitoring wells (C11, C12, C13; C21, C22, C23; and C31, C32, C33) at two levels (average
value of
À10 and
À20 m). The axes are in meters
