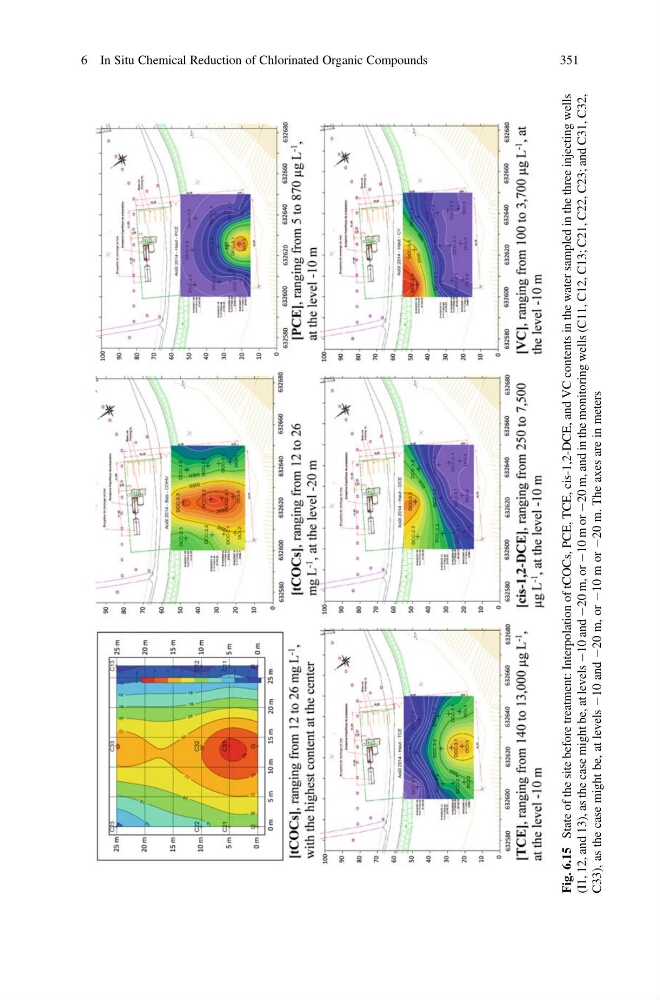

Fig. 6.15
State of the site before treatment: Interpolation of tCOCs, PCE, TCE, cis-1,2-DCE, and VC contents in the water sampled in the three injecting wells
(I1, 12, and 13), as the case might be, at levels
À10 and
À20 m, or
À10 m or
À20 m, and in the monitoring wells (C11, C12, C13; C21, C22, C23; and C31, C32,
C33), as the case might be, at levels
À10 and
À20 m, or
À10 m or
À20 m. The axes are in meters
