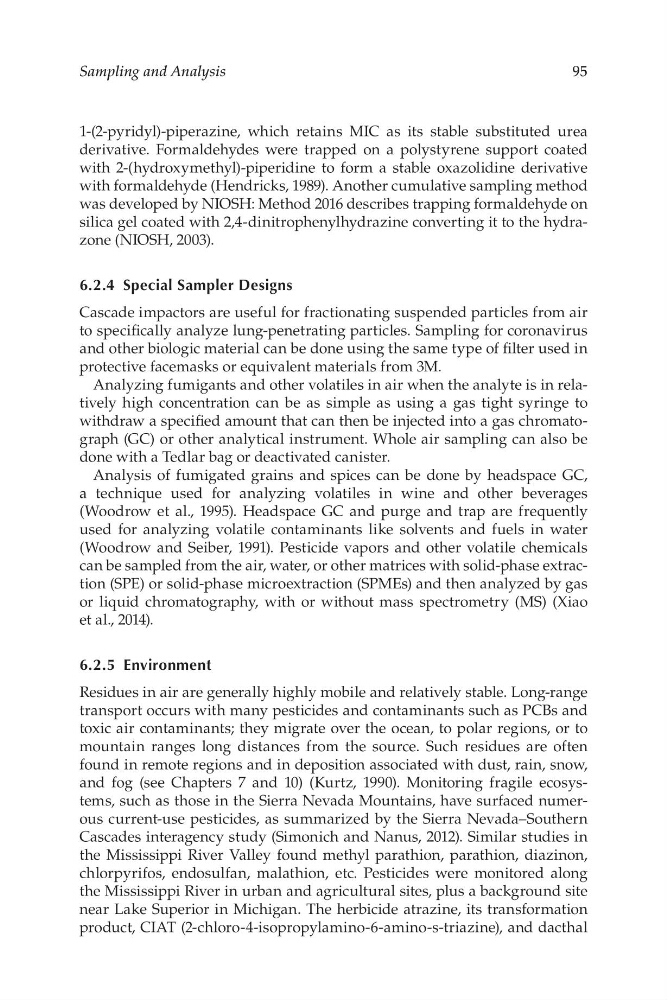

95
Sampling and Analysis
1-(2-pyridyl)-piperazine, which retains MIC as its stable substituted urea
derivative. Formaldehydes were trapped on a polystyrene support coated
with 2-(hydroxymethyl)-piperidine to form a stable oxazolidine derivative
with formaldehyde (Hendricks, 1989). Another cumulative sampling method
was developed by NIOSH: Method 2016 describes trapping formaldehyde on
silica gel coated with 2,4-dinitrophenylhydrazine converting it to the hydrazone (NIOSH, 2003).
6.2.4 Special Sampler Designs
Cascade impactors are useful for fractionating suspended particles from air
to specifcally analyze lung-penetrating particles. Sampling for coronavirus
and other biologic material can be done using the same type of flter used in
protective facemasks or equivalent materials from 3M.
Analyzing fumigants and other volatiles in air when the analyte is in relatively high concentration can be as simple as using a gas tight syringe to
withdraw a specifed amount that can then be injected into a gas chromatograph (GC) or other analytical instrument. Whole air sampling can also be
done with a Tedlar bag or deactivated canister.
Analysis of fumigated grains and spices can be done by headspace GC,
a technique used for analyzing volatiles in wine and other beverages
(Woodrow et al., 1995). Headspace GC and purge and trap are frequently
used for analyzing volatile contaminants like solvents and fuels in water
(Woodrow and Seiber, 1991). Pesticide vapors and other volatile chemicals
can be sampled from the air, water, or other matrices with solid-phase extraction (SPE) or solid-phase microextraction (SPMEs) and then analyzed by gas
or liquid chromatography, with or without mass spectrometry (MS) (Xiao
et al., 2014).
6.2.5 Environment
Residues in air are generally highly mobile and relatively stable. Long-range
transport occurs with many pesticides and contaminants such as PCBs and
toxic air contaminants; they migrate over the ocean, to polar regions, or to
mountain ranges long distances from the source. Such residues are often
found in remote regions and in deposition associated with dust, rain, snow,
and fog (see Chapters 7 and 10) (Kurtz, 1990). Monitoring fragile ecosystems, such as those in the Sierra Nevada Mountains, have surfaced numerous current-use pesticides, as summarized by the Sierra Nevada–Southern
Cascades interagency study (Simonich and Nanus, 2012). Similar studies in
the Mississippi River Valley found methyl parathion, parathion, diazinon,
chlorpyrifos, endosulfan, malathion, etc. Pesticides were monitored along
the Mississippi River in urban and agricultural sites, plus a background site
near Lake Superior in Michigan. The herbicide atrazine, its transformation
product, CIAT (2-chloro-4-isopropylamino-6-amino-s-triazine), and dacthal
