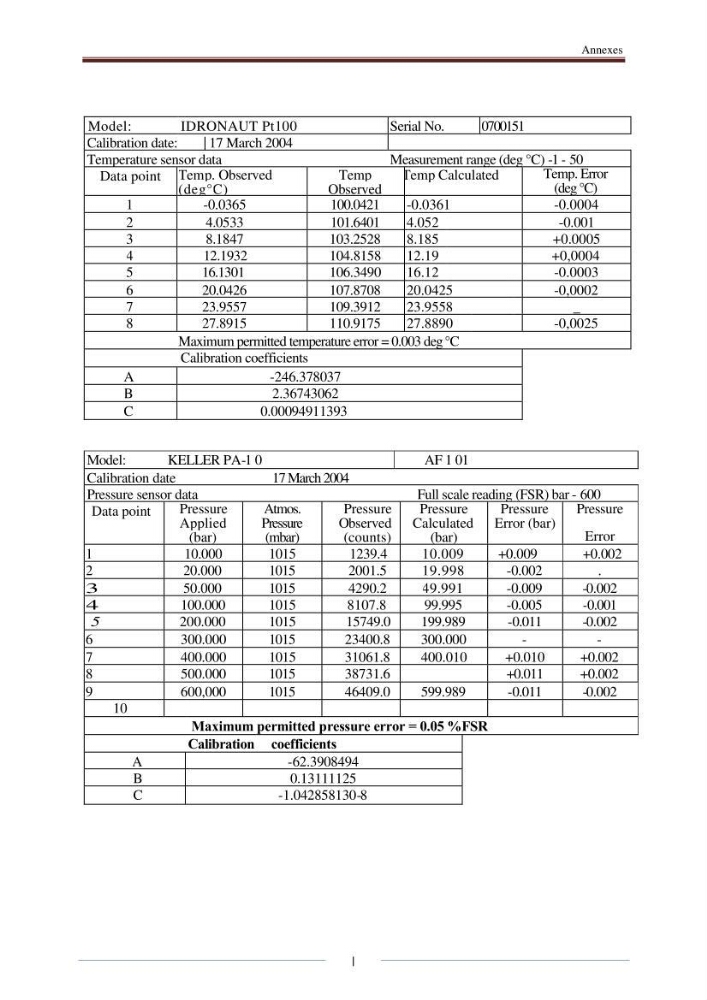

Annexes
I
Model:
IDRONAUT Pt100
Serial No.
0700151
Calibration date:
| 17 March 2004
Temperature sensor data
Measurement range (deg °C) -1 - 50
Data point Temp. Observed
(deg°C)
Temp
Observed
(Counts)
Temp Calculated
(deg °C)
Temp. Error
(deg °C)
1
-0.0365
100.0421
-0.0361
-0.0004
2
4.0533
101.6401
4.052
-0.001
3
8.1847
103.2528
8.185
+0.0005
4
12.1932
104.8158
12.19
+0,0004
5
16.1301
106.3490
16.12
-0.0003
6
20.0426
107.8708
20.0425
-0,0002
7
23.9557
109.3912
23.9558
_
8
27.8915
110.9175
27.8890
-0,0025
Maximum permitted temperature error = 0.003 deg °C
Calibration coefficients
A
-246.378037
B
2.36743062
C
0.00094911393
Model:
KELLER PA-1 0
AF 1 01
Calibration date
17 March 2004
Pressure sensor data
Full scale reading (FSR) bar - 600
Data point
Pressure
Applied
(bar)
Atmos.
Pressure
(mbar)
Pressure
Observed
(counts)
Pressure
Calculated
(bar)
Pressure
Error (bar)
Pressure
Error
(%FSR)
1
10.000
1015
1239.4
10.009
+0.009
+0.002
2
20.000
1015
2001.5
19.998
-0.002
.
3
50.000
1015
4290.2
49.991
-0.009
-0.002
4
100.000
1015
8107.8
99.995
-0.005
-0.001
5
200.000
1015
15749.0
199.989
-0.011
-0.002
6
300.000
1015
23400.8
300.000
-
-
7
400.000
1015
31061.8
400.010
+0.010
+0.002
8
500.000
1015
38731.6
+0.011
+0.002
9
600,000
1015
46409.0
599.989
-0.011
-0.002
10
Maximum permitted pressure error = 0.05 %FSR
Calibration coefficients
A
-62.3908494
B
0.13111125
C
-1.042858130-8
