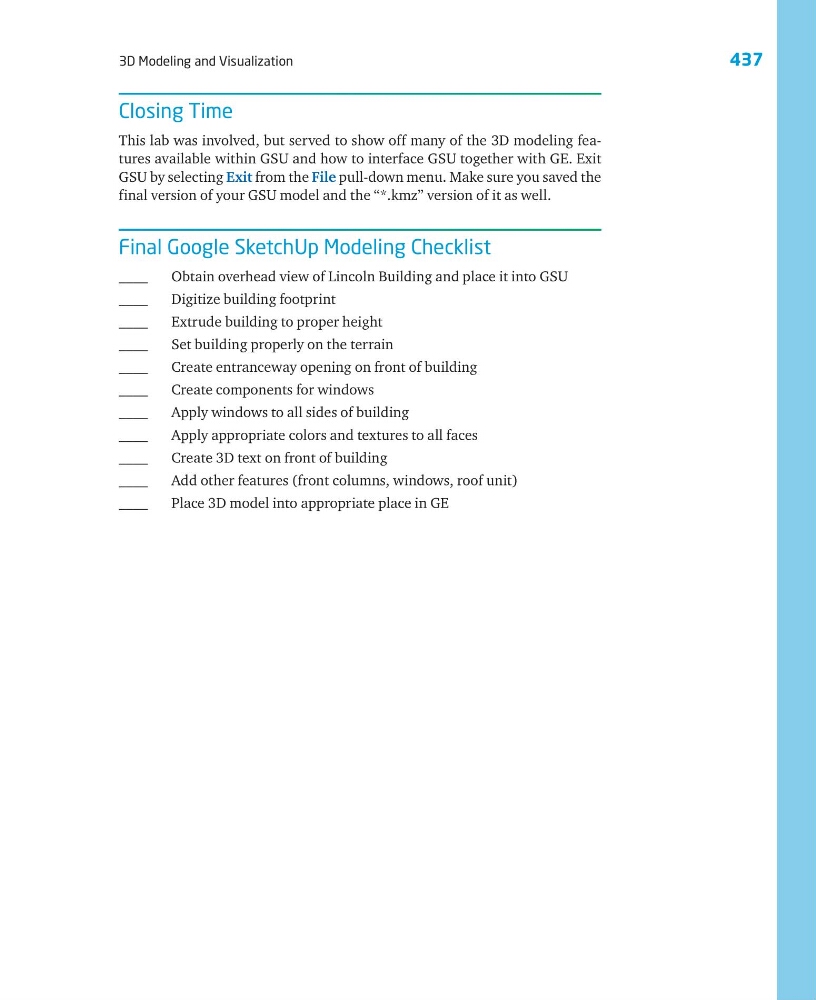

437
3D Modeling and Visualization
Closing Time
This lab was involved, but served to show off many of the 3D modeling features available within GSU and how to interface GSU together with GE. Exit
GSU by selecting Exit from the File pull-down menu. Make sure you saved the
final version of your GSU model and the “*.kmz” version of it as well.
Final Google SketchUp Modeling Checklist
____
Obtain overhead view of Lincoln Building and place it into GSU
____
Digitize building footprint
____
Extrude building to proper height
____
Set building properly on the terrain
____
Create entranceway opening on front of building
____
Create components for windows
____
Apply windows to all sides of building
____
Apply appropriate colors and textures to all faces
____
Create 3D text on front of building
____
Add other features (front columns, windows, roof unit)
____
Place 3D model into appropriate place in GE
