310

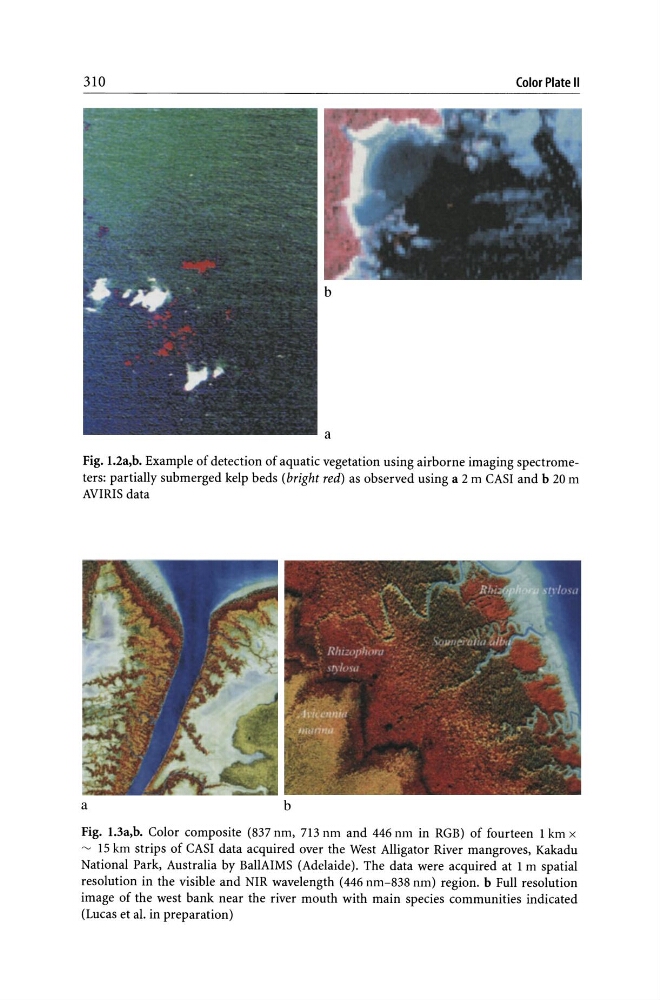

Color Plate II
Fig. I.2a,b. Example of detection of aquatic vegetation using airborne imaging spectrometers: partially submerged kelp beds (bright red) as observed using a 2 m CASI and b 20 m
AVIRIS data
a
b
Fig. I.3a,b. Color composite (837 nm, 713 nm and 446 nm in RGB) of fourteen 1 km x
~ 15 km strips of CASI data acquired over the West Alligator River mangroves, Kakadu
National Park, Australia by BaliAIMS (Adelaide). The data were acquired at 1 m spatial
resolution in the visible and NIR wavelength (446 nm-838 nm) region. b Full resolution
image of the west bank near the river mouth with main species communities indicated
(Lucas et al. in preparation)
