Spectral Checkerboard
When overlapping separate high resolution images of the woodland, there are likely
to be areas where the overlapping pictures do not exactly align for all pixels, particularly around object edges. Edge effects are imperfect overlaps of the layers that
cause the spectral signature of a pixel found at the edge to show incorrect reflectance spectra. For example, a signature at the edge may have 4 bands showing a leaf

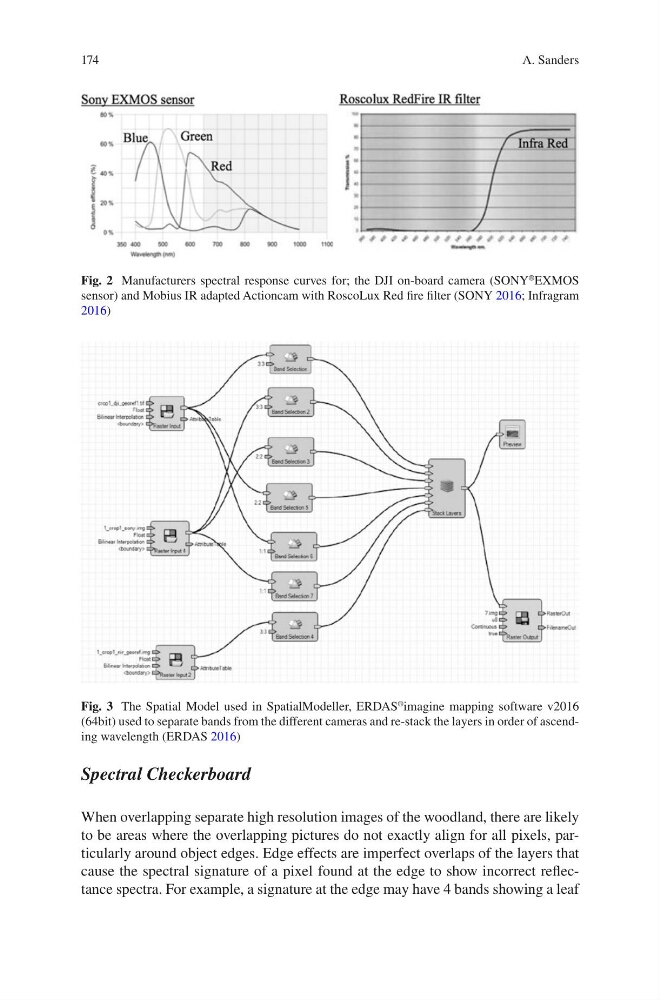

Fig. 2 Manufacturers spectral response curves for; the DJI on-board camera (SONY
® EXMOS
sensor) and Mobius IR adapted Actioncam with RoscoLux Red fire filter (SONY 2016; Infragram
2016)
Fig. 3 The Spatial Model used in SpatialModeller, ERDAS
®
imagine mapping software v2016
(64bit) used to separate bands from the different cameras and re-stack the layers in order of ascending wavelength (ERDAS 2016)
