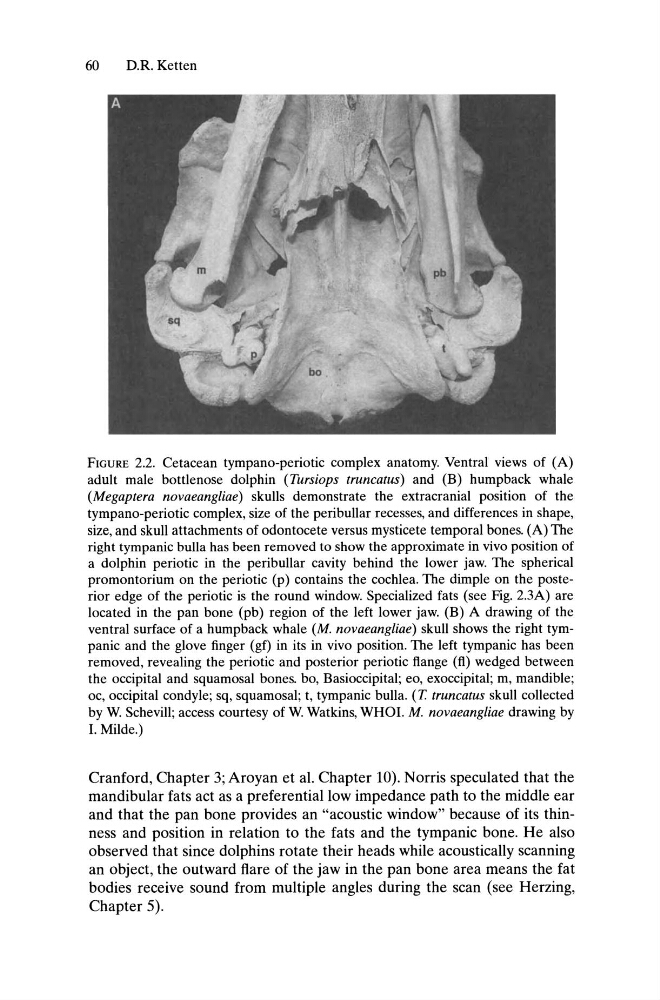

FIGURE 2.2. Cetacean tympano-periotic complex anatomy. Ventral views of (A)
adult male bottlenose dolphin (Tursiops truncatus) and (B) humpback whale
(Megaptera novaeangliae) skulls demonstrate the extracranial position of the
tympano-periotic complex, size of the peribullar recesses, and differences in shape,
size, and skull attachments of odontocete versus mysticete temporal bones. (A) The
right tympanic bulla has been removed to show the approximate in vivo position of
a dolphin periotic in the peribullar cavity behind the lower jaw. The spherical
promontorium on the periotic (p) contains the cochlea. The dimple on the posterior edge of the periotic is the round window. Specialized fats (see Fig. 2.3A) are
located in the pan bone (pb) region of the left lower jaw. (B) A drawing of the
ventral surface of a humpback whale (M. novaeangliae) skull shows the right tympanic and the glove finger (gf) in its in vivo position. The left tympanic has been
removed, revealing the periotic and posterior periotic flange (fl) wedged between
the occipital and squamosal bones. bo, Basioccipital; eo, exoccipital; m, mandible;
oc, occipital condyle; sq, squamosal; t, tympanic bulla. (T truncatus skull collected
by W. Schevill; access courtesy of W. Watkins, WHOI. M. novaeangliae drawing by
I. Milde.)
