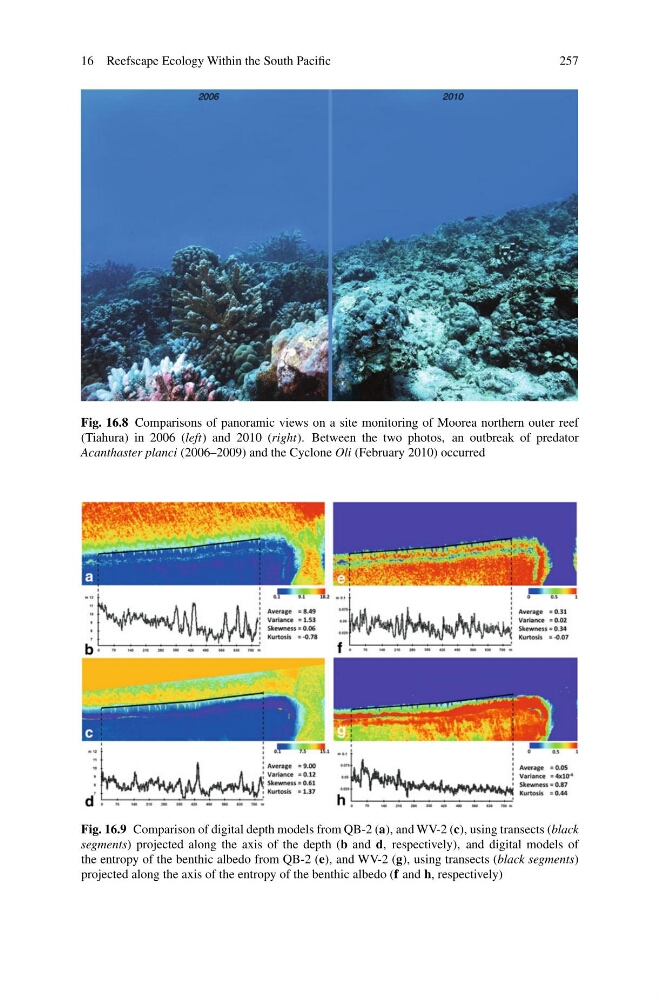

Fig. 16.8 Comparisons of panoramic views on a site monitoring of Moorea northern outer reef
(Tiahura) in 2006 (left) and 2010 (right). Between the two photos, an outbreak of predator
Acanthaster planci (2006–2009) and the Cyclone Oli (February 2010) occurred
Fig. 16.9 Comparison of digital depth models from QB-2 (a), and WV-2 (c), using transects (black
segments) projected along the axis of the depth (b and d, respectively), and digital models of
the entropy of the benthic albedo from QB-2 (e), and WV-2 (g), using transects (black segments)
projected along the axis of the entropy of the benthic albedo (f and h, respectively)
