174
A. Bhattacharya
" -.
- ; - . .

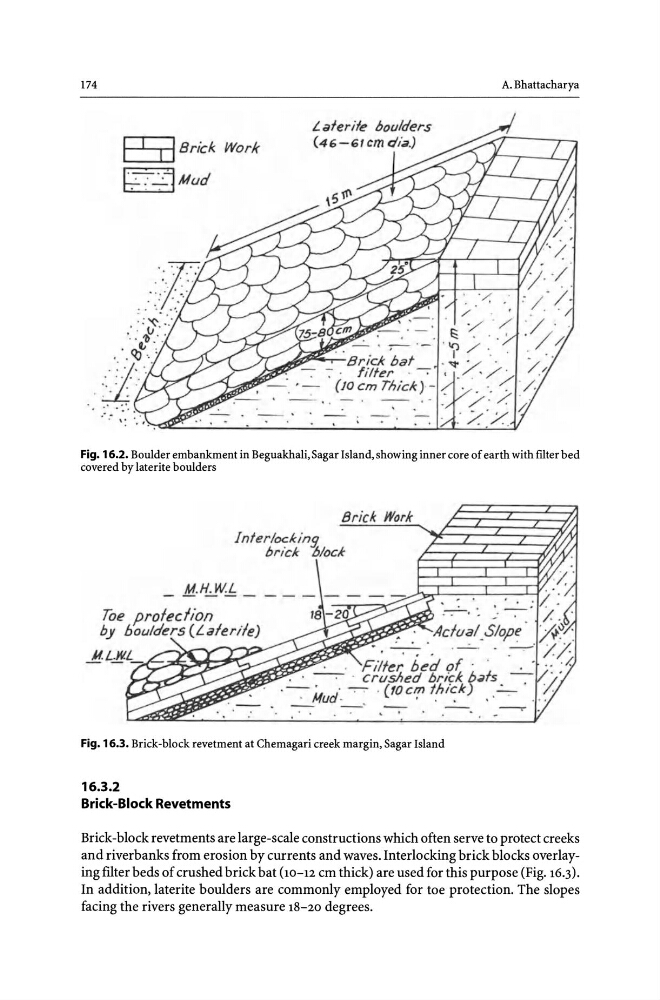

Fig. 16.2. Boulder embankment in Beguakhali, Sagar Island, showing inner core of earth with filter bed
covered by laterite boulders
M.H.WL _
Toe profec lion
by boulders (Lalerile)
-.l!: LWL ~::::;.;-~IPt:;?'c:.
Mud ·
Fig. 16.3. Brick-block revetment at Chemagari creek margin, Sagar Island
16.3.2
Brick-Block Revetments
Brick-block revetments are large-scale constructions which often serve to protect creeks
and riverbanks from erosion by currents and waves. Interlocking brick blocks overlaying filter beds of crushed brick bat (10-12 em thick) are used for this purpose (Fig. 16.3).
In addition, laterite boulders are commonly employed for toe protection. The slopes
facing the rivers generally measure 18-20 degrees.
