The failure diagrams show that the studied ice types demonstrate various
behavior during the test under consideration and variations in the beam length. It
can be seen that:
• Ice crushing under indenter forcing in the initial stage of the beam loading is
almost not distinguished from the force record in the sea ice; it can be identified
in the model columnar ice at some tests and it clearly appears in the model
fine-granule ice (FG type).

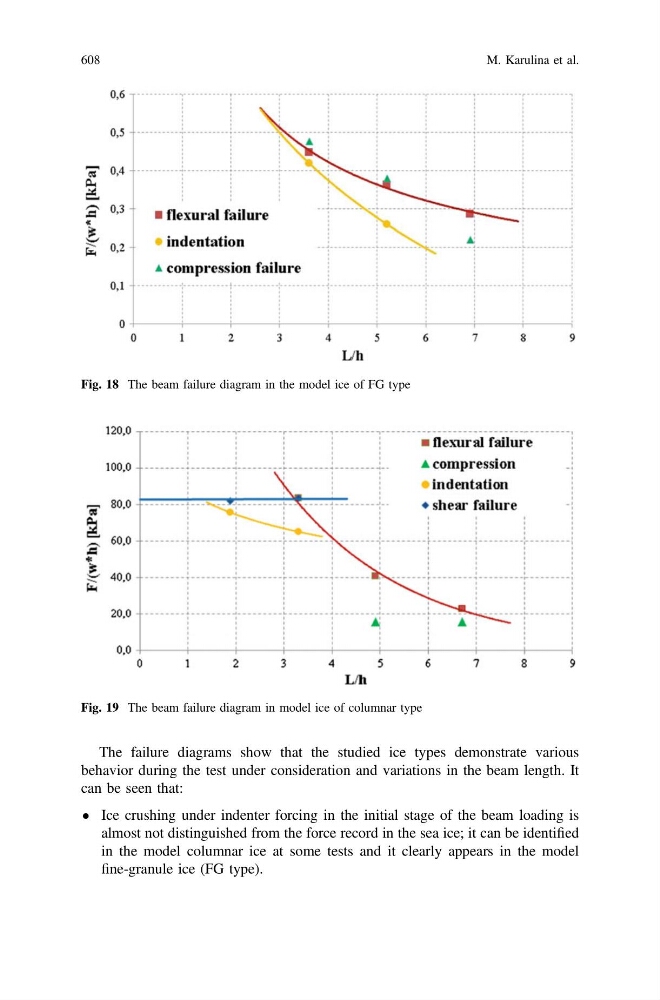

Fig. 18 The beam failure diagram in the model ice of FG type
Fig. 19 The beam failure diagram in model ice of columnar type
608
M. Karulina et al.
