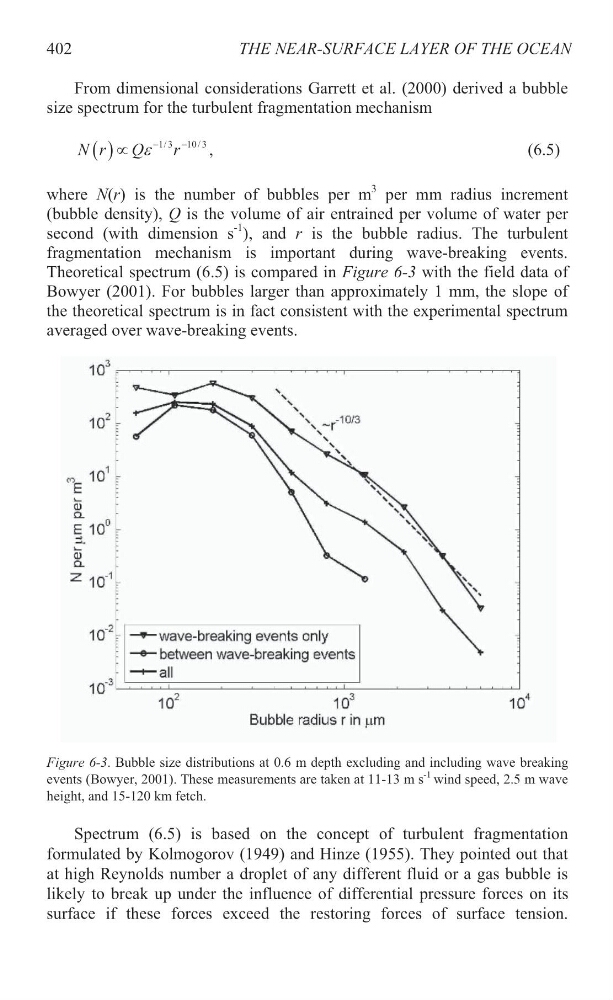

THE NEAR-SURFACE LAYER OF THE OCEAN
From dimensional considerations Garrett et al. (2000) derived a bubble
size spectrum for the turbulent fragmentation mechanism
1/ 3 10 / 3
N r
Q
r
H
v
,
(6.5)
where N(r) is the number of bubbles per m
3 per mm radius increment
(bubble density), Q is the volume of air entrained per volume of water per
second (with dimension s
-1 ), and r is the bubble radius. The turbulent
fragmentation mechanism is important during wave-breaking events.
Theoretical spectrum (6.5) is compared in Figure 6-3 with the field data of
Bowyer (2001). For bubbles larger than approximately 1 mm, the slope of
the theoretical spectrum is in fact consistent with the experimental spectrum
averaged over wave-breaking events.
Figure 6-3. Bubble size distributions at 0.6 m depth excluding and including wave breaking
events (Bowyer, 2001). These measurements are taken at 11-13 m s
-1 wind speed, 2.5 m wave
height, and 15-120 km fetch.
Spectrum (6.5) is based on the concept of turbulent fragmentation
formulated by Kolmogorov (1949) and Hinze (1955). They pointed out that
at high Reynolds number a droplet of any different fluid or a gas bubble is
likely to break up under the influence of differential pressure forces on its
surface if these forces exceed the restoring forces of surface tension.
402
