Chapter 13: Spatial Patterns: EOFs and CCA

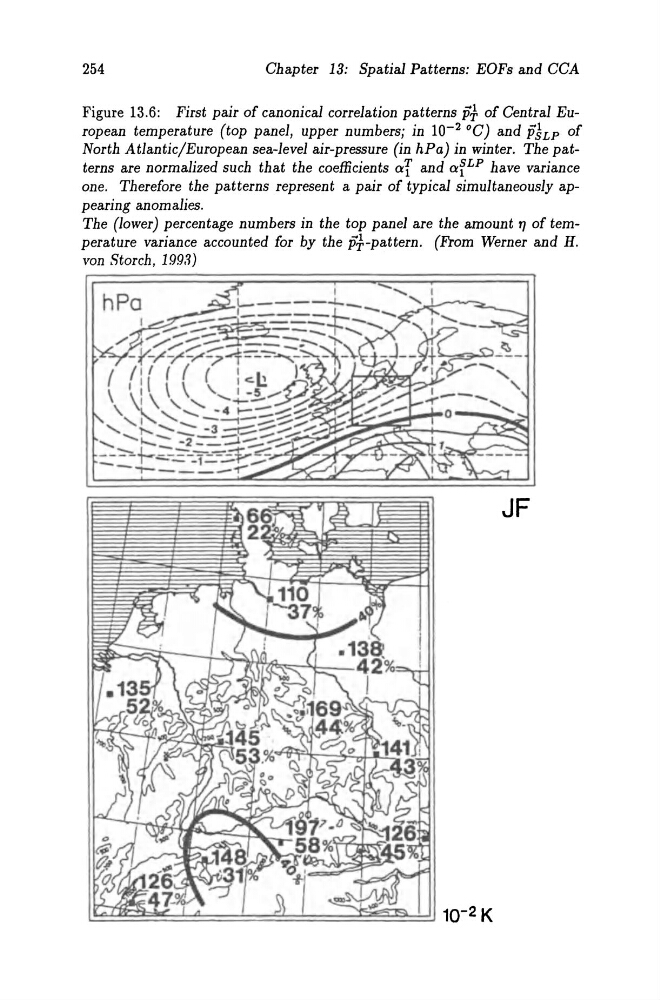

Figure 13.6: First pair of canonical correlation patterns Pt of Central European temperature (top panel, upper numbers; in 10- 2 °C) and P§LP of
North Atlantic/European sea-level air-press ure (in hPa) in winter. The patterns are normalized such that the coefficients aI and afLP have variance
one. Therefore the patterns represent a pair of typical simultaneously appearing anomalies.
The (lower) percentage numbers in the top panel are the amount 1] of temperature variance accounted for by the p:].-pattern. (From Werner and H.
von Storch, 1998)
