9.3 Large Eddy Simulation (LES)
285

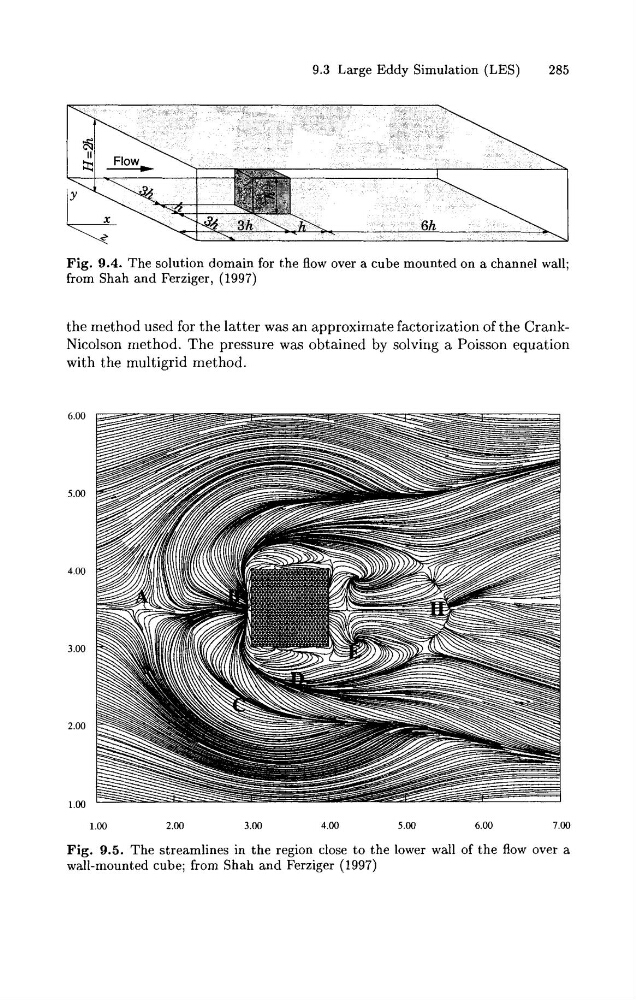

Fig. 9.4. The solution domain for the flow over a cube mounted on a channel wall;
from Shah and Ferziger, (1997)
the method used for the latter was an approximate factorization of the CrankNicolson method. The pressure was obtained by solving a Poisson equation
with the multigrid method.
Fig. 9.5. The streamlines in the region close to the lower wall of the flow over a
wall-mounted cube; from Shah and Ferziger (1997)
285
Fig. 9.4. The solution domain for the flow over a cube mounted on a channel wall;
from Shah and Ferziger, (1997)
the method used for the latter was an approximate factorization of the CrankNicolson method. The pressure was obtained by solving a Poisson equation
with the multigrid method.
Fig. 9.5. The streamlines in the region close to the lower wall of the flow over a
wall-mounted cube; from Shah and Ferziger (1997)
