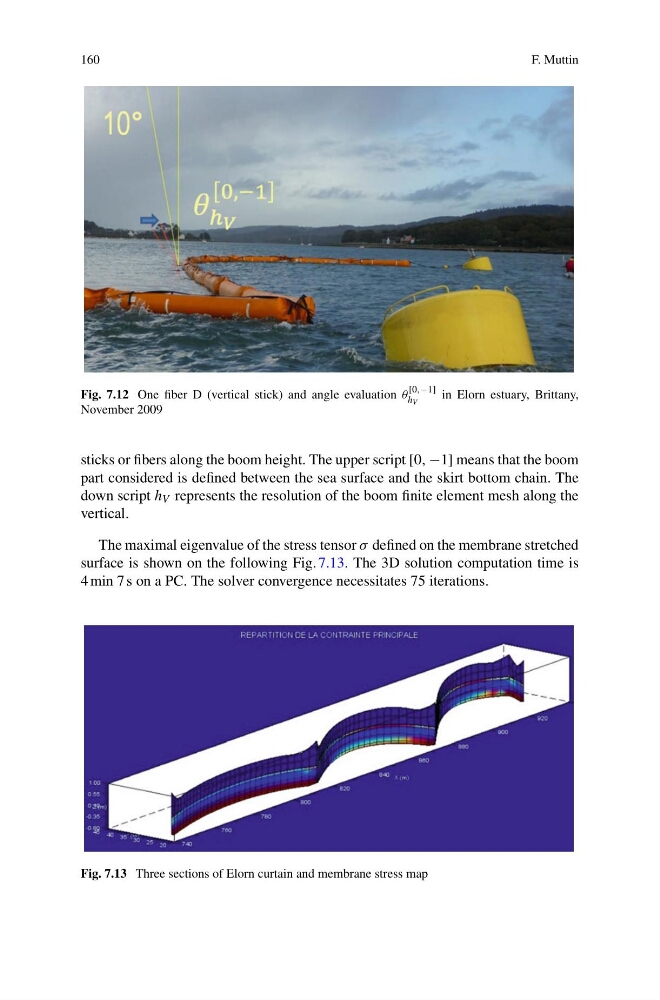

Fig. 7.12 One fiber D (vertical stick) and angle evaluation θ
[0,−1]
h V
in Elorn estuary, Brittany,
November 2009
sticks or fibers along the boom height. The upper script [0, −1] means that the boom
part considered is defined between the sea surface and the skirt bottom chain. The
down script h V represents the resolution of the boom finite element mesh along the
vertical.
The maximal eigenvalue of the stress tensor σ defined on the membrane stretched
surface is shown on the following Fig. 7.13. The 3D solution computation time is
4 min 7 s on a PC. The solver convergence necessitates 75 iterations.
Fig. 7.13 Three sections of Elorn curtain and membrane stress map
