284
3 Holographic Interferometry for Studying …

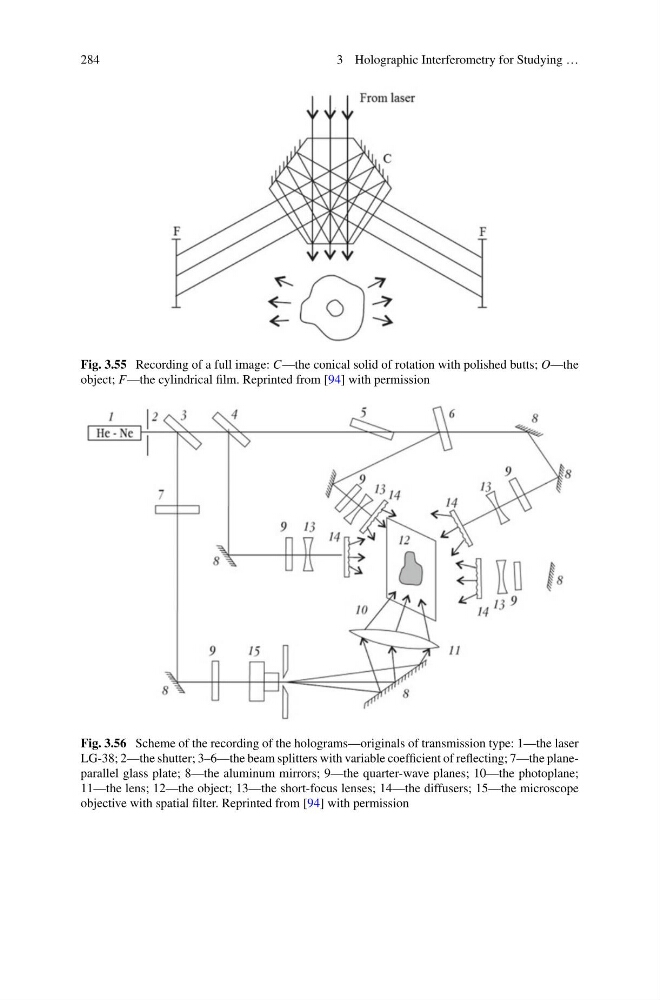

Fig. 3.55 Recording of a full image: C—the conical solid of rotation with polished butts; O—the
object; F—the cylindrical film. Reprinted from [94] with permission
Fig. 3.56 Scheme of the recording of the holograms—originals of transmission type: 1—the laser
LG-38; 2—the shutter; 3–6—the beam splitters with variable coefficient of reflecting; 7—the planeparallel glass plate; 8—the aluminum mirrors; 9—the quarter-wave planes; 10—the photoplane;
11—the lens; 12—the object; 13—the short-focus lenses; 14—the diffusers; 15—the microscope
objective with spatial filter. Reprinted from [94] with permission
