260
3 Holographic Interferometry for Studying …
measurement at the accuracy, which corresponds to the analogs of the interference holographic systems. It also enabled to show the possibility of reading and
processing of images after elimination of the dispersion impact. Continuation of
works presupposes the study of the record of focused images on photoplastic materials and improvement of circuitry on principle optical scheme of the developed
set-up.
3.3.7 One of the Variants of Optical Scheme
of Laser-Holographic Complex
On the basis of previous analysis, the optical scheme presented in Fig. 3.43 can be
optimal for solving the assigned task. In this figure, O is the object under study;

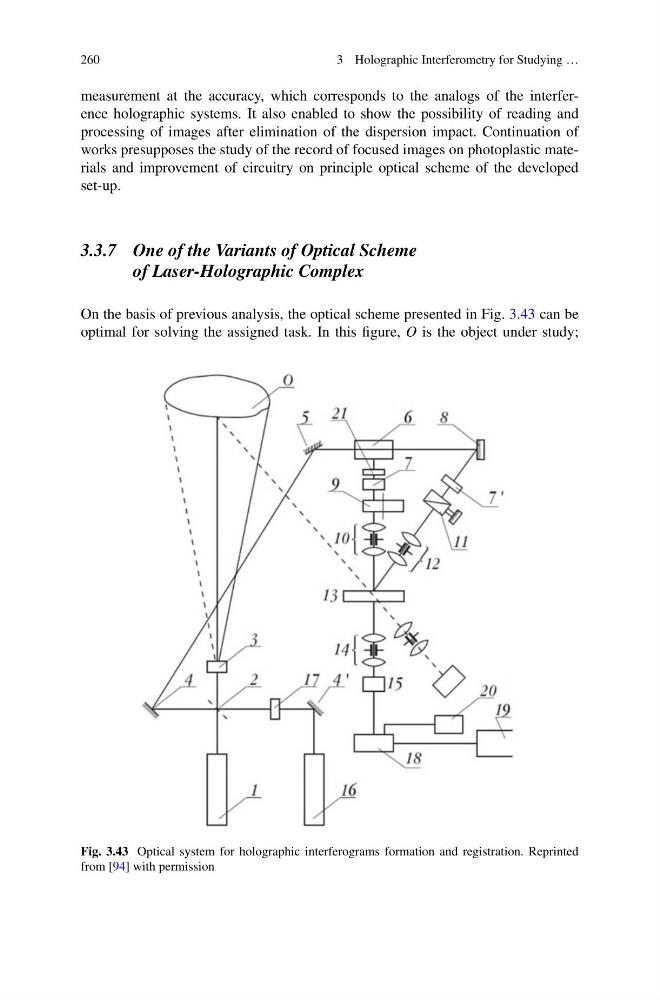

Fig. 3.43 Optical system for holographic interferograms formation and registration. Reprinted
from [94] with permission
3 Holographic Interferometry for Studying …
measurement at the accuracy, which corresponds to the analogs of the interference holographic systems. It also enabled to show the possibility of reading and
processing of images after elimination of the dispersion impact. Continuation of
works presupposes the study of the record of focused images on photoplastic materials and improvement of circuitry on principle optical scheme of the developed
set-up.
3.3.7 One of the Variants of Optical Scheme
of Laser-Holographic Complex
On the basis of previous analysis, the optical scheme presented in Fig. 3.43 can be
optimal for solving the assigned task. In this figure, O is the object under study;
Fig. 3.43 Optical system for holographic interferograms formation and registration. Reprinted
from [94] with permission
