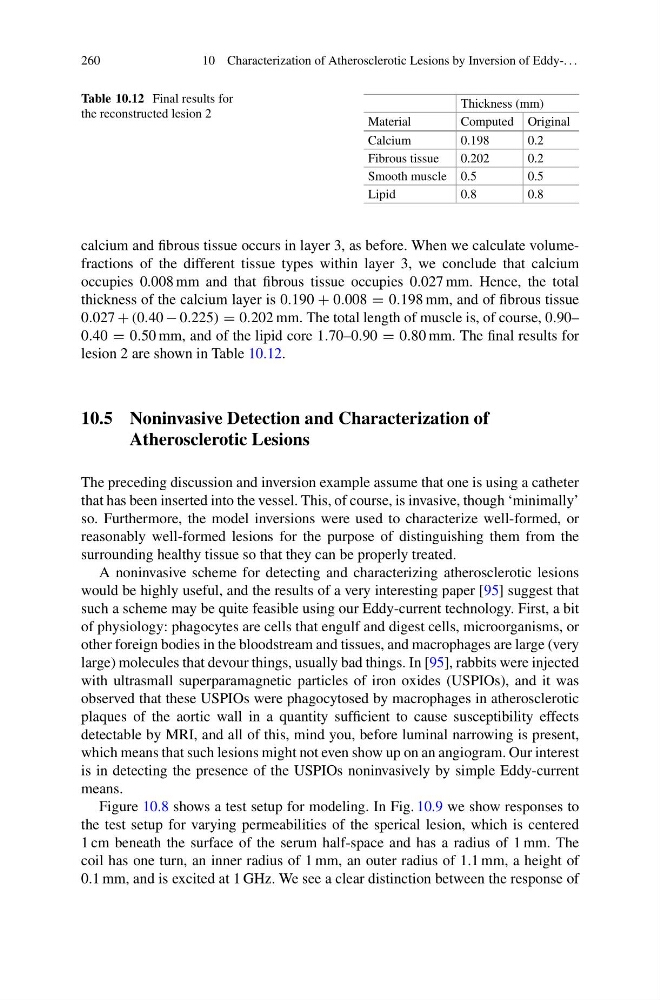

260
10 Characterization of Atherosclerotic Lesions by Inversion of Eddy-. . .
Table 10.12 Final results for
the reconstructed lesion 2
Thickness (mm)
Material
Computed Original
Calcium
0.198
0.2
Fibrous tissue
0.202
0.2
Smooth muscle 0.5
0.5
Lipid
0.8
0.8
calcium and fibrous tissue occurs in layer 3, as before. When we calculate volumefractions of the different tissue types within layer 3, we conclude that calcium
occupies 0.008 mm and that fibrous tissue occupies 0.027 mm. Hence, the total
thickness of the calcium layer is 0.190 + 0.008 = 0.198 mm, and of fibrous tissue
0.027 + (0.40 − 0.225) = 0.202 mm. The total length of muscle is, of course, 0.90–
0.40 = 0.50 mm, and of the lipid core 1.70–0.90 = 0.80 mm. The final results for
lesion 2 are shown in Table 10.12.
